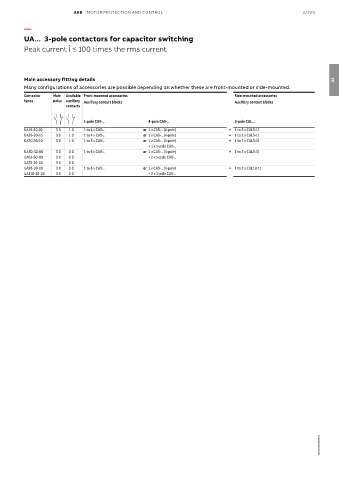

Page 303 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/229

—

UA... 3-pole contactors for capacitor switching
Peak current Î ≤ 100 times the rms current

Main accessory fitting details 03
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Available Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Auxiliary contact blocks
contacts

1-pole CA5-.. 4-pole CA5-.. 2-pole CAL...
UA16-30-10 3 0 1 0 1 to 4 x CA5-.. or 1 x CA5-.. (4-pole) + 1 to 2 x CAL5-11
UA26-30-10 3 0 1 0 1 to 4 x CA5-.. or 1 x CA5-.. (4-pole) + 1 to 2 x CAL5-11
UA30-30-10 3 0 1 0 1 to 5 x CA5-.. or 1 x CA5-.. (4-pole) + 1 to 2 x CAL5-11
+ 1 x 1-pole CA5-..
UA50-30-00 3 0 0 0 1 to 6 x CA5-.. or 1 x CA5-.. (4-pole) + 1 to 2 x CAL5-11
UA63-30-00 3 0 0 0 + 2 x 1-pole CA5-..
UA75-30-00 3 0 0 0
UA95-30-00 3 0 0 0 1 to 6 x CA5-.. or 1 x CA5-.. (4-pole) + 1 to 2 x CAL18-11
UA110-30-00 3 0 0 0 + 2 x 1-pole CA5-..

1SBC101533S0201
