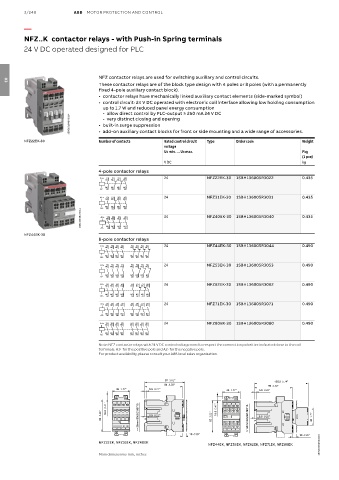

NFZ..K contactor relays - with Push-in Spring terminals
24 V DC operated designed for PLC

NFZ contactor relays are used for switching auxiliary and control circuits.
These contactor relays are of the block type design with 4 poles or 8 poles (with a permanently
03
fixed 4-pole auxiliary contact block).
• contactor relays have mechanically linked auxiliary contact elements (side-marked symbol)
• control circuit: 24 V DC operated with electronic coil interface allowing low holding consumption
up to 1.7 W and reduced panel energy consumption
- allow direct control by PLC-output ≥ 250 mA 24 V DC
1SBC101649V0014 • built-in surge suppression
- very distinct closing and opening

• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
NFZ22EK-30 Number of contacts Rated control circuit Type Order code Weight
voltage
Uc min. … Uc max. Pkg
(1 pce)
V DC kg
4-pole contactor relays
A1+ 13 21 31 43 24 NFZ22EK-30 1SBH136005R3022 0.435
NO NC NC NO
NO NC NC NO
A2- 14 22 32 44
A1+ 13 21 33 43 24 NFZ31EK-30 1SBH136005R3031 0.435
NO NC NO NO
NO 14 NC 22 NO 34 NO 44
A2-
1SBC101651V0014 A1+ NO 13 NO 23 NO 33 NO 43 24 NFZ40EK-30 1SBH136005R3040 0.435

NFZ44EK-30 A2- NO 14 NO 24 NO 34 NO 44
8-pole contactor relays
A1+ 13 23 33 43 51 61 71 81 24 NFZ44EK-30 1SBH136005R3044 0.490
NO NO NO NO NC NC NC NC
NO NO NO NO NC NC NC NC
A2- 14 24 34 44 52 62 72 82
A1+ 13 23 33 43 53 61 71 81 24 NFZ53EK-30 1SBH136005R3053 0.490
NO NO NO NO NO NC NC NC
NO NO NO NO NO NC NC NC
A2- 14 24 34 44 54 62 72 82
A1+ 13 23 33 43 53 61 71 83 24 NFZ62EK-30 1SBH136005R3062 0.490
NO NO NO NO NO NC NC NO
NO NO NO NO NO NC NC NO
A2- 14 24 34 44 54 62 72 84
A1+ 13 23 33 43 53 61 73 83 24 NFZ71EK-30 1SBH136005R3071 0.490
NO NO NO NO NO NC NO NO
NO NO NO NO NO NC NO NO
A2- 14 24 34 44 54 62 74 84
A1+ 13 23 33 43 53 63 73 83 24 NFZ80EK-30 1SBH136005R3080 0.490
NO NO NO NO NO NO NO NO
NO NO NO NO NO NO NO NO
A2- 14 24 34 44 54 64 74 84
Note: NFZ contactor relays with 24 V DC control voltage need to respect the connection polarities indicated close to the coil
terminals: A1+ for the positive pole and A2- for the negative pole.
For product availability, please consult your ABB local sales organization.

97 3.82" 130.5 5.14"
91 3.58" 91 3.58"
45 1.77" 5.5 0.22" 45 1.77" 5.5 0.22"

10.5 0.41" 10.5 0.41"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 82 3.22" 35mm EN/EC 60715 5.5 0.22" 45 1.77"

10 0.39" 10 0.39"
NFZ22EK, NFZ31EK, NFZ40EK NFZ44EK, NFZ53EK, NFZ62EK, NFZ71EK, NFZ80EK 1SBC100500S0201

Main dimensions mm, inches
