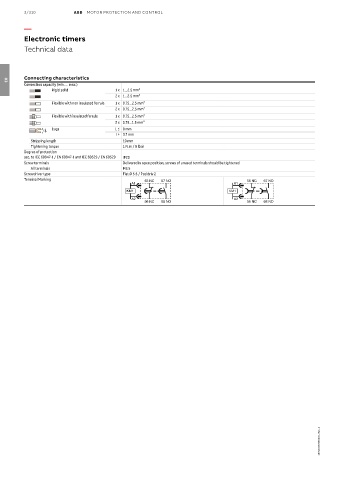

Page 384 - Motor protection and control Manual motor starters, contactors and overload relays

3/310 ABB MOTOR PROTECTION AND CONTROL

—

Electronic timers
Technical data

Connecting characteristics
Connection capacity (min. ... max.)
03
Rigid solid 1 x 1...2.5 mm²
2 x 1...2.5 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...1.5 mm²
Lugs L ≤ 8 mm
l L
l > 3.7 mm
Stripping length 10 mm
Tightening torque 1 N.m / 9 lb.in
Degree of protection
acc. to IEC 60947-1 / EN 60947-1 and IEC 60529 / EN 60529 IP20
Screw terminals Delivered in open position, screws of unused terminals should be tightened
All terminals M3.5
Screwdriver type Flat Ø 5.5 / Pozidriv 2
Terminal Marking 55 NC 67 NO 55 NC 67 NO
A1 A1
KM1 KM1
A2 A2
56 NC 68 NO 56 NC 68 NO

1SBC101674S0201 - Rev. A
