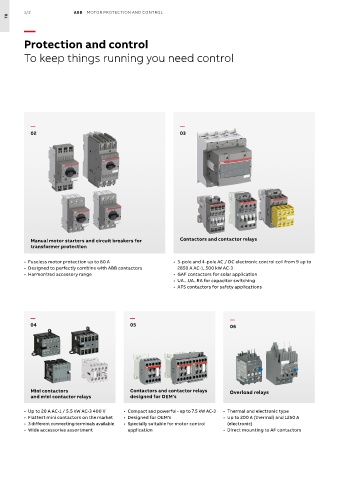

1/2 ABB MOTOR PROTECTION AND CONTROL
01
—

Protection and control

To keep things running you need control

— —
02 03

Manual motor starters and circuit breakers for Contactors and contactor relays
transformer protection

• Fuseless motor protection up to 80 A • 3-pole and 4-pole AC / DC electronic control coil from 9 up to
• Designed to perfectly combine with ABB contactors 2850 A AC-1, 500 kW AC-3
• Harmonized accessory range • GAF contactors for solar application
• UA...UA..RA for capacitor switching
• AFS contactors for safety applications

— — —
04 05 06

Mini contactors Contactors and contactor relays Overload relays
and mini contactor relays designed for OEM's

• Up to 20 A AC-1 / 5.5 kW AC-3 400 V • Compact and powerful - up to 7.5 kW AC-3 • Thermal and electronic type
• Flattest mini contactors on the market • Designed for OEM's • Up to 200 A (thermal) and 1250 A
• 3 different connecting terminals available • Specially suitable for motor control (electronic)
• Wide accessories assortment application • Direct mounting to AF contactors
