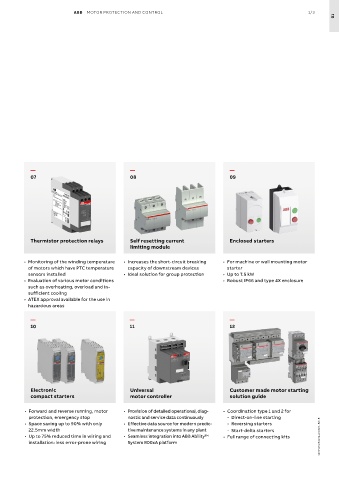

Page 5 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 1/3
01

— — —
07 08 09

Thermistor protection relays Self resetting current Enclosed starters
limiting module

• Monitoring of the winding temperature • Increases the short-circuit breaking • For machine or wall mounting motor
of motors which have PTC temperature capacity of downstream devices starter
sensors installed • Ideal solution for group protection • Up to 7.5 kW
• Evaluation of various motor conditions • Robust IP66 and type 4X enclosure
such as overheating, overload and in-
sufficient cooling
• ATEX approval available for the use in
hazardous areas

— — —
10 11 12

Electronic Universal Customer made motor starting
compact starters motor controller solution guide

• Forward and reverse running, motor • Provision of detailed operational, diag- • Coordination type 1 and 2 for
protection, emergency stop nostic and service data continuously - Direct-on-line starting
• Space saving up to 90% with only • Effective data source for modern predic- - Reversing starters
22.5mm width tive maintenance systems in any plant - Start-delta starters
• Up to 75% reduced time in wiring and • Seamless integration into ABB Ability™ • Full range of connecting kits sommaire illustre_produit - Rev. B
installation: less error-prone wiring System 800xA platform
