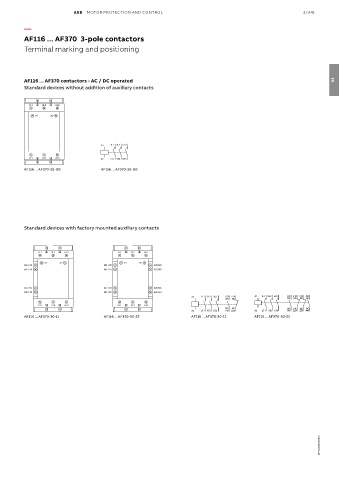

AF116 ... AF370 3-pole contactors
Terminal marking and positioning

AF116 ... AF370 contactors - AC / DC operated 03
Standard devices without addition of auxiliary contacts

1L1 3L2 5L3
A1 A2

A1 1L1 3L2 5L3
2T1 4T2 6T3 A2 2T1 4T2 6T3

AF116 ... AF370-30-00 AF116 ... AF370-30-00

Standard devices with factory mounted auxiliary contacts

1L1 3L2 5L3 1L1 3L2 5L3
A1 A2 A1 A2
NO 13X NO 13X 43X NO
NC 21X NC 21X 31X NC

NC 22X NC 22X 32X NC
NO 14X NO 14X 44X NO
A1 1L1 3L2 5L3 13X 21X A1 1L1 3L2 5L3 13X 21X 31X 43X
NC
NO
NO
NC
NO NC
2T1 4T2 6T3 2T1 4T2 6T3
NO NC NO NC NC NO
A2 2T1 4T2 6T3 14X 22X A2 2T1 4T2 6T3 14X 22X 32X 44X
AF116 ... AF370-30-11 AF116 ... AF370-30-22 AF116 ... AF370-30-11 AF116 ... AF370-30-22

1SFC101130C0201
