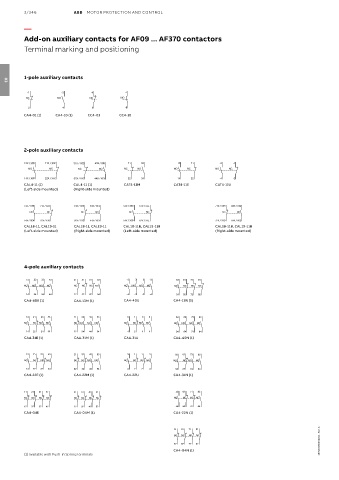

Add-on auxiliary contacts for AF09 ... AF370 contactors
Terminal marking and positioning

1-pole auxiliary contacts
03
-1 -3 -5 -7
NC NO NC NO
-2 -4 -6 -8
CA4-01 (1) CA4-10 (1) CC4-01 CC4-10

2-pole auxiliary contacts

13X / 44X 21X / 32X 31X / 22X 43X / 14X 21 33 13 21 -3 -1
NO NC NC NO NC NO NO NC NO NC
14X / 43X 22X / 31X 32X / 21X 44X / 13X 22 34 14 22 -4 -2
CAL4-11 (1) CAL4-11 (1) CAT4-11M CAT4-11E CAT4-11U
(Left-side mounted) (Right-side mounted)

13X / 44X 21X / 32X 31X / 22X 43X / 14X 53X / 84X 61X / 72X 71X / 62X 83X / 54X
NO NC NC NO NO NC NC NO
14X / 43X 22X / 31X 32X / 21X 44X / 13X 54X / 83X 62X / 71X 72X / 61X 84X / 53X
CAL18-11, CAL19-11 CAL18-11, CAL19-11 CAL18-11B, CAL19-11B CAL18-11B, CAL19-11B
(Left-side mounted) (Right-side mounted) (Left-side mounted) (Right-side mounted)

4-pole auxiliary contacts

13 23 33 43 21 31 41 53 -3 -3 -3 -3 53 61 71 81
NO NO NO NO NC NC NC NO NO NO NO NO NO NC NC NC
14 24 34 44 22 32 42 54 -4 -4 -4 -4 54 62 72 82
CA4-40E (1) CA4-13M (1) CA4-40U CA4-13N (1)

13 21 33 43 21 33 43 53 3 1 3 3 53 63 73 83
NO NC NO NO NC NO NO NO NO NC NO NO NO NO NO NO
14 22 34 44 22 34 44 54 4 2 4 4 54 64 74 84
CA4-31E (1) CA4-31M (1) CA4-31U CA4-40N (1)

13 21 31 43 21 31 43 53 3 1 1 3 53 61 73 83
NO NC NC NO NC NC NO NO NO NC NC NO NO NC NO NO
14 22 32 44 22 32 44 54 4 2 2 4 54 62 74 84
CA4-22E (1) CA4-22M (1) CA4-22U CA4-31N (1)

11 21 31 41 21 31 41 51 53 61 71 83
NC NC NC NC NC NC NC NC NO NC NC NO
12 22 32 42 22 32 42 52 54 62 72 84
CA4-04E CA4-04M (1) CA4-22N (1)

51 61 71 81
NC NC NC NC
52 62 72 82 1SBC101660S0201 - Rev. A
CA4-04N (1)
(1) available with Push-in Spring terminals
