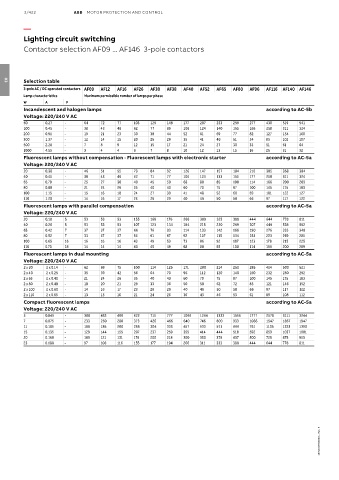

3/422 ABB MOTOR PROTECTION AND CONTROL

—

Lighting circuit switching
Contactor selection AF09 ... AF146 3-pole contactors

Selection table
03
3-pole AC / DC operated contactors AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146
Lamp characteristics Maximum permissible number of lamps per phase
W A μF
Incandescent and halogen lamps according to AC-5b
Voltage: 220/240 V AC
60 0.27 - 64 72 77 103 129 148 177 207 233 259 277 430 519 541
100 0.45 - 38 43 46 62 77 89 106 124 140 155 166 258 311 324
200 0.91 - 19 21 23 30 38 44 52 61 69 77 82 127 154 160
300 1.37 - 12 14 15 20 25 29 35 41 46 51 54 85 102 107
500 2.28 - 7 8 9 12 15 17 21 24 27 30 33 51 61 64
1000 4.55 - 3 4 4 6 7 8 10 12 13 15 16 25 31 32
Fluorescent lamps without compensation - Fluorescent lamps with electronic starter according to AC-5a
Voltage: 220/240 V AC
20 0.38 - 46 51 55 73 84 92 126 147 157 184 210 305 368 384
40 0.45 - 38 43 46 62 71 77 106 124 133 155 177 258 311 324
65 0.70 - 25 27 30 40 45 50 68 80 85 100 114 166 200 209
80 0.80 - 21 24 26 35 40 43 60 70 75 87 100 145 175 183
100 1.15 - 15 16 18 24 27 30 41 48 52 60 69 101 122 127
110 1.20 - 14 16 17 23 26 29 40 46 50 58 66 97 117 122
Fluorescent lamps with parallel compensation according to AC-5a
Voltage: 220/240 V AC
20 0.18 5 53 53 53 155 168 176 266 309 325 388 444 644 778 811
40 0.26 5 53 53 53 107 123 134 184 215 230 269 307 446 538 562
65 0.42 7 37 37 37 66 76 83 114 133 142 166 190 276 333 348
80 0.52 7 33 37 37 53 61 67 92 107 115 134 153 223 269 281
100 0.65 16 16 16 16 43 49 53 73 86 92 107 123 178 215 225
110 0.70 18 14 14 14 40 45 49 68 80 85 100 114 166 200 209
Fluorescent lamps in dual mounting according to AC-5a
Voltage: 220/240 V AC
2 x 20 2 x 0.14 - 62 69 75 100 114 125 171 200 214 250 285 414 500 521
2 x 40 2 x 0.25 - 35 39 42 56 64 70 96 112 120 140 160 232 280 292
2 x 65 2 x 0.40 - 21 24 26 35 40 43 60 70 75 87 100 145 175 183
2 x 80 2 x 0.48 - 18 20 21 29 33 36 50 58 62 72 83 121 146 152
2 x 100 2 x 0.60 - 14 16 17 23 26 29 40 46 50 58 66 97 117 122
2 x 110 2 x 0.65 - 13 15 16 21 24 26 36 43 46 53 61 89 108 112
Compact fluorescent lamps according to AC-5a
Voltage: 220/240 V AC
5 0.045 - 388 433 466 622 711 777 1066 1244 1333 1555 1777 2578 3111 3244
7 0.075 - 233 260 280 373 426 466 640 746 800 933 1066 1547 1867 1947
11 0.105 - 166 185 200 266 304 333 457 533 571 666 761 1105 1333 1390
15 0.135 - 129 144 155 207 237 259 355 414 444 518 592 859 1037 1081
20 0.160 - 109 121 131 175 200 218 300 350 375 437 500 725 875 913
23 0.180 - 97 108 116 155 177 194 266 311 333 388 444 644 778 811

1SBC101961S0201 - Rev. B
