ABB MOTOR PROTECTION AND CONTROL 3/423
—

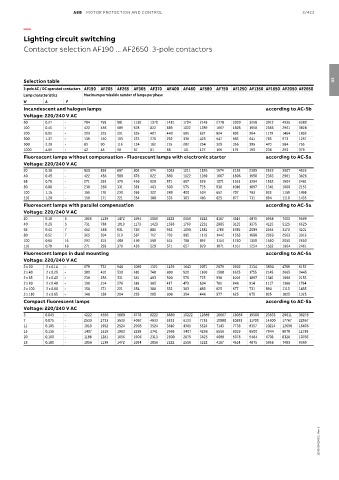

Lighting circuit switching
Contactor selection AF190 ... AF2650 3-pole contactors
Selection table 03
3-pole AC / DC operated contactors AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650
Lamp characteristics Maximum permissible number of lamps per phase
W A μF
Incandescent and halogen lamps according to AC-5b
Voltage: 220/240 V AC
60 0.27 - 704 759 981 1130 1370 1481 1704 2148 2778 3009 3250 3972 4935 6380
100 0.45 - 422 456 589 678 822 889 1022 1289 1667 1806 1950 2383 2961 3828
200 0.91 - 209 225 291 335 407 440 505 637 824 893 964 1179 1464 1893
300 1.37 - 139 150 193 223 270 292 336 423 547 593 641 783 973 1257
500 2.28 - 83 90 116 134 162 175 202 254 329 356 385 470 584 755
1000 4.55 - 42 45 58 67 81 88 101 127 165 179 193 236 293 379
Fluorescent lamps without compensation - Fluorescent lamps with electronic starter according to AC-5a
Voltage: 220/240 V AC
20 0.38 - 500 539 697 803 974 1053 1211 1526 1974 2138 2309 2822 3507 4533
40 0.45 - 422 456 589 678 822 889 1022 1289 1667 1806 1950 2383 2961 3828
65 0.70 - 271 293 379 436 529 571 657 829 1071 1161 1254 1532 1904 2461
80 0.80 - 238 256 331 381 463 500 575 725 938 1016 1097 1341 1666 2153
100 1.15 - 165 178 230 265 322 348 400 504 652 707 763 933 1159 1498
110 1.20 - 158 171 221 254 308 333 383 483 625 677 731 894 1110 1435
Fluorescent lamps with parallel compensation according to AC-5a
Voltage: 220/240 V AC
20 0.18 5 1056 1139 1472 1694 2056 2222 2556 3222 4167 4514 4875 5958 7403 9569
40 0.26 5 731 788 1019 1173 1423 1538 1769 2231 2885 3125 3375 4125 5125 6625
65 0.42 7 452 488 631 726 881 952 1095 1381 1786 1935 2089 2554 3173 4101
80 0.52 7 365 394 510 587 712 769 885 1115 1442 1563 1688 2063 2563 3313
100 0.65 16 292 315 408 469 569 615 708 892 1154 1250 1350 1650 2050 2650
110 0.70 18 271 293 379 436 529 571 657 829 1071 1161 1254 1532 1904 2461
Fluorescent lamps in dual mounting according to AC-5a
Voltage: 220/240 V AC
2 x 20 2 x 0.14 - 679 732 946 1089 1321 1429 1643 2071 2679 2902 3134 3830 4759 6152
2 x 40 2 x 0.25 - 380 410 530 610 740 800 920 1160 1500 1625 1755 2145 2665 3445
2 x 65 2 x 0.40 - 238 256 331 381 463 500 575 725 938 1016 1097 1341 1666 2153
2 x 80 2 x 0.48 - 198 214 276 318 385 417 479 604 781 846 914 1117 1388 1794
2 x 100 2 x 0.60 - 158 171 221 254 308 333 383 483 625 677 731 894 1110 1435
2 x 110 2 x 0.65 - 146 158 204 235 285 308 354 446 577 625 675 825 1025 1325
Compact fluorescent lamps according to AC-5a
Voltage: 220/240 V AC
5 0.045 - 4222 4556 5889 6778 8222 8889 10222 12889 16667 18056 19500 23833 29611 38278
7 0.075 - 2533 2733 3533 4067 4933 5333 6133 7733 10000 10833 11700 14300 17767 22967
11 0.105 - 1810 1952 2524 2905 3524 3810 4381 5524 7143 7738 8357 10214 12690 16405
15 0.135 - 1407 1519 1963 2259 2741 2963 3407 4296 5556 6019 6500 7944 9870 12759
20 0.160 - 1188 1281 1656 1906 2313 2500 2875 3625 4688 5078 5484 6703 8328 10766
23 0.180 - 1056 1139 1472 1694 2056 2222 2556 3222 4167 4514 4875 5958 7403 9569
1SBC101961S0201 - Rev. B
