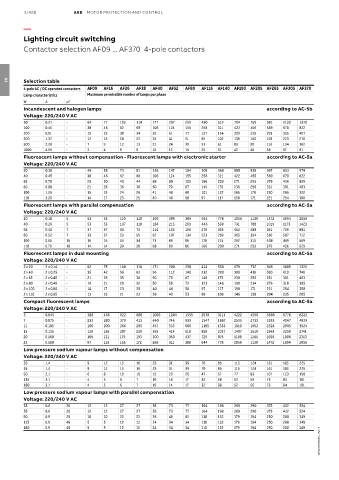

Page 502 - Motor protection and control Manual motor starters, contactors and overload relays

3/428 ABB MOTOR PROTECTION AND CONTROL

—

Lighting circuit switching
Contactor selection AF09 ... AF370 4-pole contactors

Selection table
03
4-pole AC / DC operated contactors AF09 AF16 AF26 AF38 AF40 AF52 AF80 AF116 AF140 AF190 AF205 AF265 AF305 AF370
Lamp characteristics Maximum permissible number of lamps per phase
W A μF
Incandescent and halogen lamps according to AC-5b
Voltage: 220/240 V AC
60 0.27 - 64 77 103 114 177 207 259 430 519 704 759 981 1130 1370
100 0.45 - 38 46 62 68 106 124 155 258 311 422 456 589 678 822
200 0.91 - 19 23 30 34 52 61 77 127 154 209 225 291 335 407
300 1.37 - 12 15 20 22 35 41 51 85 102 139 150 193 223 270
500 2.28 - 7 9 12 13 21 24 30 51 61 83 90 116 134 162
1000 4.55 - 3 4 6 6 10 12 15 25 31 42 45 58 67 81
Fluorescent lamps without compensation - Fluorescent lamps with electronic starter according to AC-5a
Voltage: 220/240 V AC
20 0.38 - 46 55 73 81 126 147 184 305 368 500 539 697 803 974
40 0.45 - 38 46 62 68 106 124 155 258 311 422 456 589 678 822
65 0.70 - 25 30 40 44 68 80 100 166 200 271 293 379 436 529
80 0.80 - 21 26 35 38 60 70 87 145 175 238 256 331 381 463
100 1.15 - 15 18 24 26 41 48 60 101 122 165 178 230 265 322
110 1.20 - 14 17 23 25 40 46 58 97 117 158 171 221 254 308
Fluorescent lamps with parallel compensation according to AC-5a
Voltage: 220/240 V AC
20 0.18 5 53 53 110 110 266 309 309 644 778 1056 1139 1472 1694 2056
40 0.26 5 53 53 107 110 184 215 269 446 538 731 788 1019 1173 1423
65 0.42 7 37 37 66 73 114 133 166 276 333 452 488 631 726 881
80 0.52 7 33 37 53 59 92 107 134 223 269 365 394 510 587 712
100 0.65 16 16 16 34 34 73 86 96 178 215 292 315 408 469 569
110 0.70 18 14 14 30 30 68 80 86 166 200 271 293 379 436 529
Fluorescent lamps in dual mounting according to AC-5a
Voltage: 220/240 V AC
2 x 20 2 x 0.14 - 62 75 100 110 171 200 250 414 500 679 732 946 1089 1321
2 x 40 2 x 0.25 - 35 42 56 62 96 112 140 232 280 380 410 530 610 740
2 x 65 2 x 0.40 - 21 26 35 38 60 70 87 145 175 238 256 331 381 463
2 x 80 2 x 0.48 - 18 21 29 32 50 58 72 121 146 198 214 276 318 385
2 x 100 2 x 0.60 - 14 17 23 25 40 46 58 97 117 158 171 221 254 308
2 x 110 2 x 0.65 - 13 16 21 23 36 43 53 89 108 146 158 204 235 285
Compact fluorescent lamps according to AC-5a
Voltage: 220/240 V AC
5 0.045 - 388 466 622 688 1066 1244 1555 2578 3111 4222 4556 5889 6778 8222
7 0.075 - 233 280 373 413 640 746 933 1547 1867 2533 2733 3533 4067 4933
11 0.105 - 166 200 266 295 457 533 666 1105 1333 1810 1952 2524 2905 3524
15 0.135 - 129 155 207 229 355 414 518 859 1037 1407 1519 1963 2259 2741
20 0.160 - 109 131 175 193 300 350 437 725 875 1188 1281 1656 1906 2313
23 0.180 - 97 116 155 172 266 311 388 644 778 1056 1139 1472 1694 2056
Low pressure sodium vapour lamps without compensation
Voltage: 220/240 V AC
35 1.4 - 9 12 15 16 23 31 39 70 85 115 124 161 185 225
55 1.4 - 9 12 15 16 23 31 39 70 85 115 124 161 185 225
90 2.1 - 6 8 10 10 15 20 26 47 57 77 83 107 123 150
135 3.1 - 4 5 6 7 10 14 17 32 38 52 56 73 84 101
180 3.1 - 4 5 6 7 10 14 17 32 38 52 56 73 84 101
Low pressure sodium vapour lamps with parallel compensation
Voltage: 220/240 V AC
35 0.6 20 12 12 27 27 55 73 77 164 198 269 290 375 432 524
55 0.6 20 12 12 27 27 55 73 77 164 198 269 290 375 432 524
90 0.9 25 10 10 22 22 36 48 61 110 132 179 194 250 288 349
135 0.9 45 5 5 12 12 34 34 34 110 132 179 194 250 288 349
180 0.9 45 5 5 12 12 34 34 34 110 132 179 194 250 288 349
1SBC101961S0201 - Rev. B
