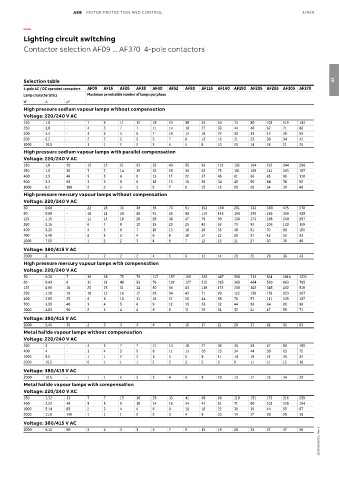

Page 503 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/429

—

Lighting circuit switching
Contactor selection AF09 ... AF370 4-pole contactors

Selection table 03
4-pole AC / DC operated contactors AF09 AF16 AF26 AF38 AF40 AF52 AF80 AF116 AF140 AF190 AF205 AF265 AF305 AF370
Lamp characteristics Maximum permissible number of lamps per phase
W A μF
High pressure sodium vapour lamps without compensation
Voltage: 220/240 V AC
150 1.8 - 7 9 11 12 18 24 30 45 54 74 80 103 119 144
250 3,0 - 4 5 7 7 11 14 18 27 33 44 48 62 71 86
400 4.4 - 3 3 4 5 7 10 12 18 22 30 33 42 49 59
600 6.2 - 2 2 3 3 5 7 8 13 16 21 23 30 34 42
1000 10.3 - 1 1 2 2 3 4 5 8 10 13 14 18 21 25
High pressure sodium vapour lamps with parallel compensation
Voltage: 220/240 V AC
150 1,0 20 12 12 21 23 33 43 55 93 112 152 164 212 244 296
250 1.5 36 7 7 14 15 22 29 36 62 75 101 109 141 163 197
400 2.5 48 5 5 8 9 13 17 22 37 45 61 66 85 98 118
600 3.3 65 3 3 6 6 10 13 16 28 34 46 50 64 74 90
1000 6.2 100 2 2 3 3 5 7 8 15 18 25 26 34 39 48
High pressure mercury vapour lamps without compensation
Voltage: 220/240 V AC
50 0.60 - 22 28 35 38 55 73 91 152 190 261 333 380 475 570
80 0.80 - 16 21 26 28 41 55 68 114 143 196 249 285 356 428
125 1.15 - 11 14 18 20 28 38 47 79 99 136 173 198 248 297
250 2.15 - 6 7 9 10 15 20 25 42 53 73 93 106 133 159
400 3.25 - 4 5 6 7 10 13 16 28 35 48 61 70 88 105
700 5.40 - 2 3 3 4 6 8 10 17 21 29 37 42 53 63
1000 7.50 - 1 2 2 3 4 5 7 12 15 21 27 30 38 46
Voltage: 380/415 V AC
2000 8 - 1 2 2 2 4 5 6 11 14 20 25 29 36 43
High pressure mercury vapour lamps with compensation
Voltage: 220/240 V AC
50 0.28 7 36 36 75 79 117 157 196 326 407 560 713 814 1018 1221
80 0.43 8 31 31 48 53 76 102 127 212 265 365 464 530 663 795
125 0.66 10 20 25 31 34 50 66 83 138 173 238 302 345 432 518
250 1.28 18 10 13 16 17 25 34 42 71 89 122 156 178 223 267
400 2.05 25 6 8 10 11 16 21 26 44 56 76 97 111 139 167
700 3.55 40 3 4 5 6 9 12 15 26 32 44 56 64 80 96
1000 4.83 60 2 3 4 4 6 9 11 19 24 32 41 47 59 71
Voltage: 380/415 V AC
2000 5,45 35 2 3 3 4 6 8 10 17 21 29 37 42 52 63
Metal halide vapour lamps without compensation
Voltage: 220/240 V AC
250 3 - 4 5 7 7 11 14 18 27 33 46 58 67 83 100
400 4 - 3 4 5 5 8 11 13 20 25 34 44 50 63 75
1000 9.5 - 1 1 2 2 3 4 5 8 11 14 18 21 26 32
2000 16.5 - 0 1 1 1 2 2 3 5 6 8 11 12 15 18
Voltage: 380/415 V AC
2000 10.5 - 1 1 2 2 3 4 5 8 10 13 17 19 24 29
Metal halide vapour lamps with compensation
Voltage: 220/240 V AC
250 1.32 33 7 7 15 16 25 33 41 69 86 119 151 173 216 259
400 2.22 45 5 5 9 10 14 19 24 41 51 71 90 103 128 154
1000 5.14 85 2 3 4 4 6 8 10 18 22 30 39 44 55 67
2000 11.5 148 1 1 1 2 2 3 4 8 10 14 17 20 25 30
Voltage: 380/415 V AC
1SBC101961S0201 - Rev. B
2000 6.10 60 2 2 3 3 5 7 9 15 19 26 33 37 47 56
