3/434 ABB MOTOR PROTECTION AND CONTROL

—

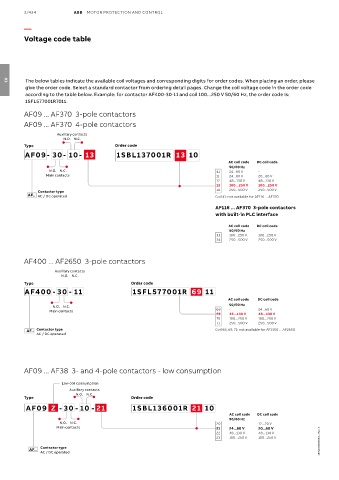

Voltage code table

The below tables indicate the available coil voltages and corresponding digits for order codes. When placing an order, please
03
give the order code. Select a standard contactor from ordering detail pages. Change the coil voltage code in the order code
according to the table below. Example: for contactor AF400-30-11 and coil 100...250 V 50/60 Hz, the order code is:
1SFL577001R7011.
AF09 ... AF370 3-pole contactors
AF09 ... AF370 4-pole contactors

Auxiliary contacts
N.O. N.C.
Type Order code
AF09 - 30- 10 - 13 1SBL137001R 13 10
AC coil code DC coil code
50/60 Hz
N.O. N.C. 41 24...60 V -
Main contacts 11 24...60 V 20...60 V
12 48...130 V 48...130 V
13 100...250 V 100...250 V
Contactor type 14 250...500 V 250...500 V
AF.. AC / DC operated Coil 41: not available for AF116 ... AF370
AF116 ... AF370 3-pole contactors
with built-in PLC interface

AC coil code DC coil code
50/60 Hz
33 100...250 V 100...250 V
34 250...500 V 250...500 V

AF400 ... AF2650 3-pole contactors

Auxiliary contacts
N.O. N.C.
Type Order code
AF400 - 30 - 11 1SFL577001R 69 11
AC coil code DC coil code
50/60 Hz
N.O. N.C.
Main contacts 68 - 24...60 V
69 48...130 V 48...130 V
70 100...250 V 100...250 V
71 250...500 V 250...500 V
AF.. Contactor type Coil 68, 69, 71: not available for AF1350 ... AF2650
AC / DC operated

AF09 ... AF38 3- and 4-pole contactors - low consumption

Low coil consumption
Auxiliary contacts
N.O. N.C.
Type Order code
AF09 Z - 30 - 10 - 21 1SBL136001R 21 10
AC coil code DC coil code
50/60 Hz
N.O. N.C. 20 - 12...20 V
Main contacts 21 24...60 V 20...60 V
22 48...130 V 48...130 V
23 100...250 V 100...250 V 1SBC101601S0201 - Rev. E
