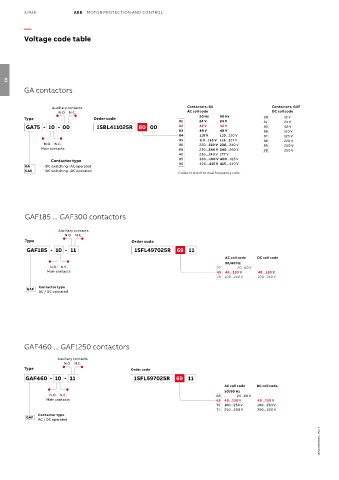

Page 510 - Motor protection and control Manual motor starters, contactors and overload relays

3/436 ABB MOTOR PROTECTION AND CONTROL

—

Voltage code table

03
GA contactors

Auxiliary contacts Contactors: GA Contactors: GAE
N.O. N.C. AC coil code DC coil code
Type Order code 50 Hz 60 Hz 80 12 V
81 24 V 24 V 81 24 V
GA75 - 10 - 00 1SBL411025R 80 00 82 42 V 42 V 83 48 V
83 48 V 48 V 86 110 V
84 110 V 110...120 V 87 125 V
89 110...115 V 115...127 V 88 220 V
N.O. N.C. 80 220...230 V 230...240 V 89 240 V
Main contacts 88 230...240 V 240...260 V 38 250 V
42 230...240 V 277 V
Contactor type 85 380...400 V 400...415 V
GA DC switching - AC operated 86 400...415 V 415...440 V
GAE DC switching - DC operated
Codes in bold for dual frequency coils.

GAF185 ... GAF300 contactors

Auxiliary contacts
N.O. N.C.
Type Order code
GAF185 - 10 - 11 1SFL497025R 69 11
AC coil code DC coil code
50/60 Hz
N.O. N.C. 72 - 20...60 V
Main contacts 69 48...130 V 48...130 V
70 100...250 V 100...250 V
Contactor type
GAF
AC / DC operated

GAF460 ... GAF1250 contactors

Auxiliary contacts
N.O. N.C.
Type Order code
GAF460 - 10 - 11 1SFL597025R 69 11
AC coil code DC coil code
50/60 Hz
N.O. N.C. 68 - 24...60 V
Main contacts 69 48...130 V 48...130 V
70 100...250 V 100...250 V
71 250...500 V 250...500 V
Contactor type
GAF
AC / DC operated
1SBC101601S0201 - Rev. E
