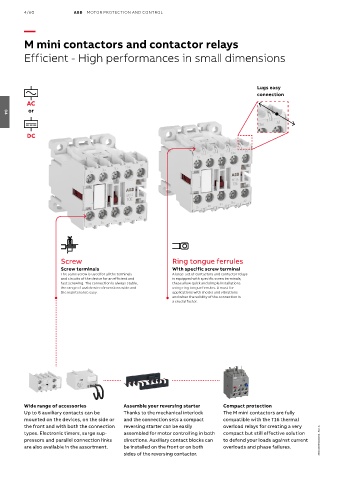

4/60 ABB MOTOR PROTECTION AND CONTROL

—

M mini contactors and contactor relays

Efficient - High performances in small dimensions

Lugs easy
connection
AC
or
04

DC

Screw Ring tongue ferrules
Screw terminals With specific screw terminal
The same screw is used for all the terminals A large set of contactors and contactor relays
and circuits of the device for an efficient and is equipped with specific screw terminals;
fast screwing. The connection is always stable, these allow quick and simple installations
the range of usable wire dimensions wide and using ring tongue ferrules. A must for
the maintenance easy. applications with shocks and vibrations
and when the solidity of the connection is
a crucial factor.

Wide range of accessories Assemble your reversing starter Compact protection
Up to 6 auxiliary contacts can be Thanks to the mechanical interlock The M mini contactors are fully
mounted on the devices, on the side or and the connection sets a compact compatible with the T16 thermal
the front and with both the connection reversing starter can be easily overload relays for creating a very
types. Electronic timers, surge sup- assembled for motor controlling in both compact but still effective solution
pressors and parallel connection links directions. Auxiliary contact blocks can to defend your loads against current 2CDC103063C0202 - Rev. A
are also available in the assortment. be installed on the front or on both overloads and phase failures.
sides of the reversing contactor.
