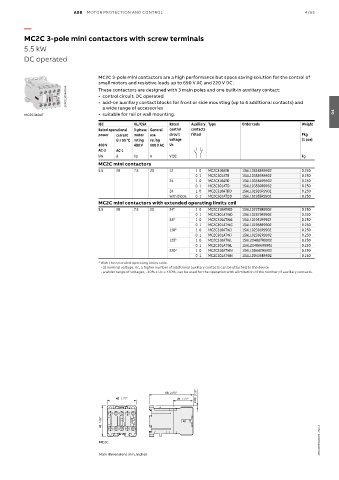

Page 581 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 4/65

—
MC2C 3-pole mini contactors with screw terminals

5.5 kW
DC operated

MC2C 3-pole mini contactors are a high performance but space saving solution for the control of
small motors and resistive loads up to 690 V AC and 220 V DC.
2CDC211006V0019 These contactors are designed with 3 main poles and one built-in auxiliary contact:
• control circuit: DC operated
• add-on auxiliary contact blocks for front or side mounting (up to 6 additional contacts) and
a wide range of accessories
MC2C310AT • suitable for rail or wall mounting. 04
IEC UL/CSA Rated Auxiliary Type Order code Weight
Rated operational 3-phase General control contacts
power current motor use circuit fitted Pkg
θ ≤ 55 °C rating rating voltage (1 pce)
400 V 480 V 600 V AC Uc
AC-3 AC-1
kW A hp A V DC kg
MC2C mini contactors
5.5 20 7.5 20 12 1 0 MC2C310ATB 1SAL103588R9902 0.250
0 1 MC2C301ATB 1SAL103589R9902 0.250
24 1 0 MC2C310ATD 1SAL103584R9902 0.250
0 1 MC2C301ATD 1SAL103580R9902 0.250
24 1 0 MC2C310ATDD 1SAL101926R9902 0.250
with Diode 0 1 MC2C301ATDD 1SAL101955R9902 0.250
MC2C mini contactors with extended operating limits coil
5.5 20 7.5 20 24* 1 0 MC2C310ATWD 1SAL102378R9902 0.250
0 1 MC2C301ATWD 1SAL102379R9902 0.250
48* 1 0 MC2C310ATWG 1SAL101951R9902 0.250
0 1 MC2C301ATWG 1SAL101958R9902 0.250
110* 1 0 MC2C310ATWJ 1SAL102381R9902 0.250
0 1 MC2C301ATWJ 1SAL102382R9902 0.250
125* 1 0 MC2C310ATWL 1SAL204887R9902 0.250
0 1 MC2C301ATWL 1SAL204886R9902 0.250
220* 1 0 MC2C310ATWN 1SAL100442R9902 0.250
0 1 MC2C301ATWN 1SAL100435R9902 0.250
* With the extended operating limits coils:
- at nominal voltage, Uc, a higher number of additional auxiliary contacts can be attached to the device
- a wider range of voltages, -30% ≤ Uc ≤ +30%, can be used for the operation with a limitation of the number of auxiliary contacts.

2.20 0.08’’
68 2.68’’
45 1.77’’ 31 1.22’’

48 1.89’’
2CDC103063C0202 - Rev. A

MC2C

Main dimensions mm, inches
