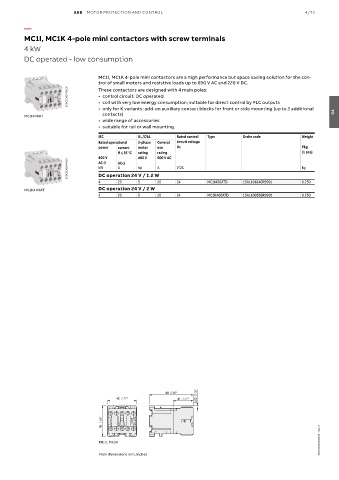

ABB  MOTOR PROTECTION AND CONTROL                                                4/73

          —
          MC1I, MC1K 4-pole mini contactors with screw terminals

          4 kW
          DC operated - low consumption


                                    MC1I, MC1K 4-pole mini contactors are a high performance but space saving solution for the con-
                                    trol of small motors and resistive loads up to 690 V AC and 220 V DC.
                         2CDC211017V0019  These contactors are designed with 4 main poles:
                                    •  control circuit: DC operated
                                    •  coil with very low energy consumption; suitable for direct control by PLC outputs
                                    •  only for K variants: add-on auxiliary contact blocks for front or side mounting (up to 2 additional
                                     contacts)                                                                        04
          MC1I400AT
                                    •  wide range of accessories
                                    •  suitable for rail or wall mounting.
                                    IEC           UL/CSA       Rated control   Type   Order code           Weight
                                    Rated operational  3-phase   General   circuit voltage
                                    power  current  motor   use   Uc                                       Pkg
                                          θ ≤ 55 °C  rating  rating                                        (1 pce)
                                    400 V  AC-1   480 V  600 V AC
                         2CDC211018V0019  kW  A   hp    A      V DC                                        kg
                                    AC-3
                                    DC operation 24 V / 1.2 W
                                    4     20      5     20     24         MC1I400ATD  1SAL101840R9901      0.250
                                    DC operation 24 V / 2 W
          MC1K400AT
                                    4     20      5     20     24         MC1K400ATD  1SAL100569R9901      0.250








































                                                                      2.20  0.08’’
                                                           68  2.68’’
                                          45  1.77’’           31  1.22’’


                                     48  1.89’’
                                                                                                                 2CDC103063C0202  - Rev. A

                                    MC1I, MC1K

                                    Main dimensions mm, inches
