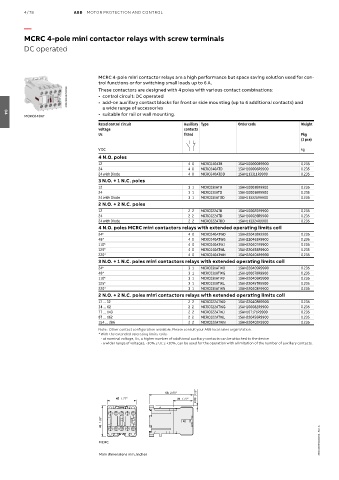

4/78 ABB MOTOR PROTECTION AND CONTROL

—
MCRC 4-pole mini contactor relays with screw terminals

DC operated

MCRC 4-pole mini contactor relays are a high performance but space saving solution used for con-
trol functions or for switching small loads up to 6 A.
2CDC211023V0019 These contactors are designed with 4 poles with various contact combinations:
• control circuit: DC operated
• add-on auxiliary contact blocks for front or side mounting (up to 6 additional contacts) and
a wide range of accessories
• suitable for rail or wall mounting.
MCRC040AT
04
Rated control circuit Auxiliary Type Order code Weight
voltage contacts
Uc fitted Pkg
(1 pce)
V DC kg
4 N.O. poles
12 4 0 MCRC040ATB 1SAH100000R9900 0.235
24 4 0 MCRC040ATD 1SAH100006R9900 0.235
24 with Diode 4 0 MCRC040ATDD 1SAH113311R9900 0.235
3 N.O. + 1 N.C. poles
12 3 1 MCRC031ATB 1SAH100010R9900 0.235
24 3 1 MCRC031ATD 1SAH100016R9900 0.235
24 with Diode 3 1 MCRC031ATDD 1SAH113325R9900 0.235
2 N.O. + 2 N.C. poles
12 2 2 MCRC022ATB 1SAH100020R9900 0.235
24 2 2 MCRC022ATD 1SAH100026R9900 0.235
24 with Diode 2 2 MCRC022ATDD 1SAH113324R9900 0.235
4 N.O. poles MCRC mini contactors relays with extended operating limits coil
24* 4 0 MCRC040ATWD 1SAH220410R9900 0.235
48* 4 0 MCRC040ATWG 1SAH220463R9900 0.235
110* 4 0 MCRC040ATWJ 1SAH220407R9900 0.235
125* 4 0 MCRC040ATWL 1SAH220458R9900 0.235
220* 4 0 MCRC040ATWN 1SAH220404R9900 0.235
3 N.O. + 1 N.C. poles mini contactors relays with extended operating limits coil
24* 3 1 MCRC031ATWD 1SAH220409R9900 0.235
48* 3 1 MCRC031ATWG 1SAH100070R9900 0.235
110* 3 1 MCRC031ATWJ 1SAH220406R9900 0.235
125* 3 1 MCRC031ATWL 1SAH220457R9900 0.235
220* 3 1 MCRC031ATWN 1SAH220403R9900 0.235
2 N.O. + 2 N.C. poles mini contactors relays with extended operating limits coil
17 … 32 2 2 MCRC022ATWD 1SAH220408R9900 0.235
34 … 62 2 2 MCRC022ATWG 1SAH100082R9900 0.235
77 … 143 2 2 MCRC022ATWJ 1SAH107171R9900 0.235
87 … 162 2 2 MCRC022ATWL 1SAH220456R9900 0.235
154 … 286 2 2 MCRC022ATWN 1SAH220402R9900 0.235
Note : Other contact configuration available. Please consult your ABB local sales organization.
* With the extended operating limits coils:
- at nominal voltage, Uc, a higher number of additional auxiliary contacts can be attached to the device
- a wider range of voltages, -30% ≤ Uc ≤ +30%, can be used for the operation with a limitation of the number of auxiliary contacts.

2.20 0.08’’
68 2.68’’
45 1.77’’ 31 1.22’’

48 1.89’’
2CDC103063C0202 - Rev. A

MCRC

Main dimensions mm, inches
