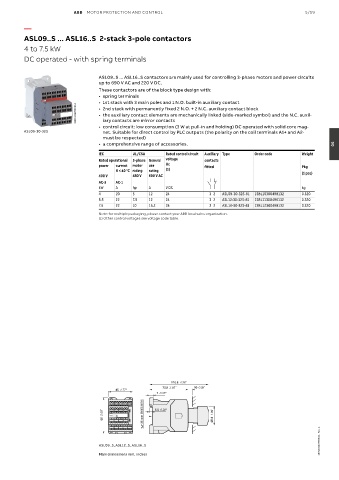

ABB MOTOR PROTECTION AND CONTROL 5/59

—
ASL09..S ... ASL16..S 2-stack 3-pole contactors

4 to 7.5 kW
DC operated - with spring terminals

ASL09..S ... ASL16..S contactors are mainly used for controlling 3-phase motors and power circuits
up to 690 V AC and 220 V DC.
These contactors are of the block type design with:
• spring terminals
• 1st stack with 3 main poles and 1 N.O. built-in auxiliary contact
1SBC101335F0014 • 2nd stack with permanently fixed 2 N.O. + 2 N.C. auxiliary contact block
• the auxiliary contact elements are mechanically linked (side-marked symbol) and the N.C. auxil-
iary contacts are mirror contacts
• control circuit: low consumption (3 W at pull-in and holding) DC operated with solid core mag-
ASL09-30-32S net. Suitable for direct control by PLC outputs (the polarity on the coil terminals A1+ and A2-
must be respected)
• a comprehensive range of accessories. 05
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc fitted Pkg
θ ≤ 40 °C rating rating (1) (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V DC kg
4 20 5 12 24 3 2 ASL09-30-32S-81 1SBL103004R8132 0.320
5.5 22 7.5 12 24 3 2 ASL12-30-32S-81 1SBL113004R8132 0.320
7.5 22 10 15.2 24 3 2 ASL16-30-32S-81 1SBL123004R8132 0.320
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

110.8 4.36"
72.5 2.85" 10 0.39"
45 1.77"
7 0.28"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 35.4 1.39"

1SBC101457S0201 - Rev. A

ASL09..S, ASL12..S, ASL16..S
Main dimensions mm, inches
