5/60 ABB MOTOR PROTECTION AND CONTROL

—

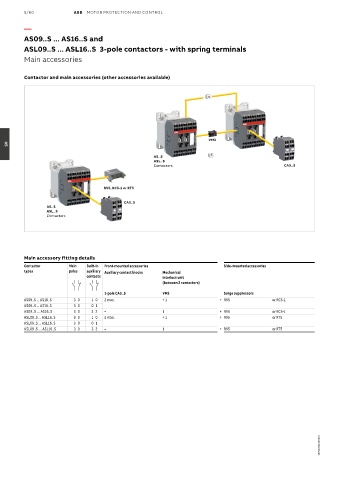

AS09..S ... AS16..S and
ASL09..S ... ASL16..S 3-pole contactors - with spring terminals
Main accessories

Contactor and main accessories (other accessories available)

VM3
05
AS..S
ASL..S
Contactors CA3..S

RV5, RC5-1 or RT5

CA3..S
AS..S
ASL..S
Contactors

Main accessory fitting details
Contactor Main Built-in Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Mechanical
contacts interlock unit
(between 2 contactors)

1-pole CA3..S VM3 Surge suppressors
AS09..S ... AS16..S 3 0 1 0 2 max. + 1 + RV5 or RC5-1
AS09..S ... AS16..S 3 0 0 1
AS09..S … AS16..S 3 0 3 2 – 1 + RV5 or RC5-1
ASL09..S ... ASL16..S 3 0 1 0 2 max. + 1 + RV5 or RT5
ASL09..S ... ASL16..S 3 0 0 1
ASL09..S … ASL16..S 3 0 3 2 – 1 + RV5 or RT5

1SBC101412S0201
