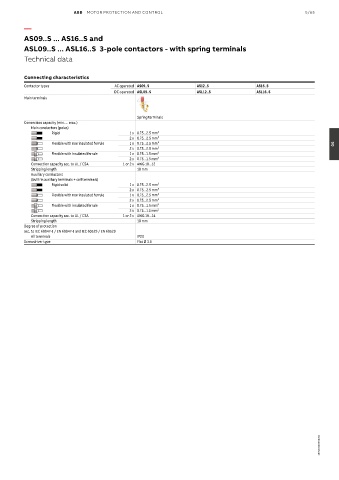

Page 681 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 5/65

—
AS09..S ... AS16..S and

ASL09..S ... ASL16..S 3-pole contactors - with spring terminals
Technical data

Connecting characteristics
Contactor types AC operated AS09..S AS12..S AS16..S
DC operated ASL09..S ASL12..S ASL16..S
Main terminals

Spring terminals
Connection capacity (min. ... max.)
Main conductors (poles)
Rigid 1 x 0.75...2.5 mm²
2 x 0.75...2.5 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm² 05
2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...1.5 mm²
2 x 0.75...1.5 mm²
Connection capacity acc. to UL / CSA 1 or 2 x AWG 18...12
Stripping length 10 mm
Auxiliary conductors
(built-in auxiliary terminals + coil terminals)
Rigid solid 1 x 0.75...2.5 mm²
2 x 0.75...2.5 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...1.5 mm²
2 x 0.75...1.5 mm²
Connection capacity acc. to UL / CSA 1 or 2 x AWG 18...14
Stripping length 10 mm
Degree of protection
acc. to IEC 60947-1 / EN 60947-1 and IEC 60529 / EN 60529
All terminals IP20
Screwdriver type Flat Ø 3.5

1SBC101490S0201
