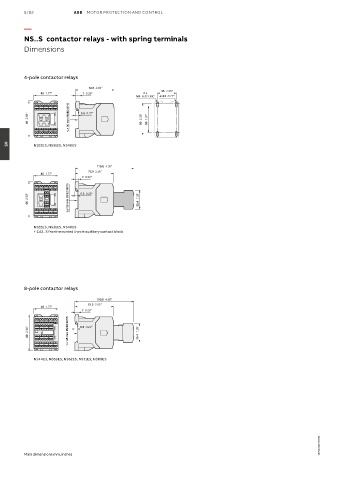

Page 698 - Motor protection and control Manual motor starters, contactors and overload relays

5/82 ABB MOTOR PROTECTION AND CONTROL

—

NS..S contactor relays - with spring terminals
Dimensions

4-pole contactor relays

72.5 2.85"
35 1.38"
45 1.77" 7 0.28" 2 x
M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 60 2.36" 50 1.97"

NS22ES, NS31ES, NS40ES
05

110.8 4.36"
72.5 2.85" 35 1.38"
45 1.77" 2 x
7 0.28" M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 35.4 1.39" 60 2.36" 50 1.97"

NS22ES, NS31ES, NS40ES
+ CA3..S front-mounted 1-pole auxiliary contact block

8-pole contactor relays
110.8 4.36"
72.5 2.85" 35 1.38"
45 1.77" 2 x
7 0.28" M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"

68 2.68" 35.4 1.39" 60 2.36" 50 1.97"

NS44ES, NS53ES, NS62ES, NS71ES, NS80ES

1SBC101417S0201

Main dimensions mm, inches
