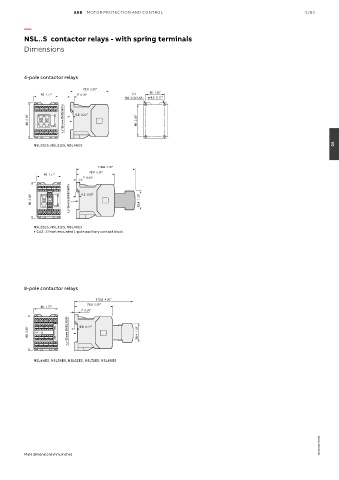

NSL..S contactor relays - with spring terminals
Dimensions

4-pole contactor relays

72.5 2.85"
45 1.77" 7 0.28" 2 x 35 1.38"
M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 60 2.36"

NSL22ES, NSL31ES, NSL40ES 05

110.8 4.36"
72.5 2.85" 35 1.38"
45 1.77" 2 x
7 0.28" M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 35.4 1.39" 60 2.36"

NSL22ES, NSL31ES, NSL40ES
+ CA3..S front-mounted 1-pole auxiliary contact block

8-pole contactor relays
110.8 4.36"
72.5 2.85" 35 1.38"
45 1.77" 2 x
7 0.28" M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"

68 2.68" 35.4 1.39" 60 2.36"

NSL44ES, NSL53ES, NSL62ES, NSL71ES, NSL80ES

1SBC101417S0201

Main dimensions mm, inches
