6/28 ABB CONTACTORS AND MOTOR PROTECTION

—

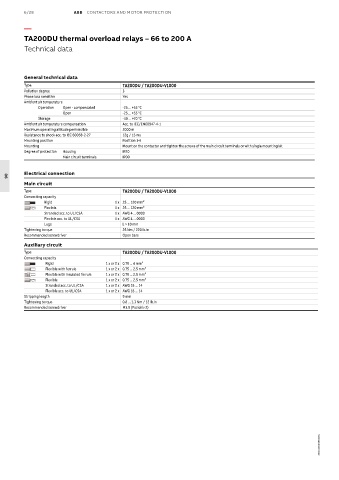

TA200DU thermal overload relays – 66 to 200 A

Technical data

General technical data
Type TA200DU / TA200DU-V1000
Pollution degree 3
Phase loss sensitive Yes
Ambient air temperature
Operation Open - compensated -25 ... +55 °C
Open -25 ... +55 °C
Storage -40 ... +70 °C
Ambient air temperature compensation Acc. to IEC/EN60947-4-1
Maximum operating altitude permissible 2000 m
Resistance to shock acc. to IEC 60068-2-27 12g / 15 ms
Mounting position Position 1-6
Mounting Mount on the contactor and tighten the screws of the main circuit terminals or with single mounting kit
Degree of protection Housing IP20
Main circuit terminals IP00

Electrical connection
06
Main circuit
Type TA200DU / TA200DU-V1000
Connecting capacity
Rigid 1 x 25 ... 120 mm²
Flexible 1 x 25 ... 120 mm²
Stranded acc. to UL/CSA 1 x AWG 4 ... 0000
Flexible acc. to UL/CSA 1 x AWG 4 ... 0000
Lugs L > 10 mm
Tightening torque 25 Nm / 220 lb.in
Recommended screwdriver Open bars
Auxiliary circuit
Type TA200DU / TA200DU-V1000
Connecting capacity
Rigid 1 x or 2 x 0.75 ... 4 mm²
Flexible with ferrule 1 x or 2 x 0.75 ... 2.5 mm²
Flexible with insulated ferrule 1 x or 2 x 0.75 ... 2.5 mm²
Flexible 1 x or 2 x 0.75 ... 2.5 mm²
Stranded acc. to UL/CSA 1 x or 2 x AWG 18 ... 14
Flexible acc. to UL/CSA 1 x or 2 x AWG 18 ... 14
Stripping length 9 mm
Tightening torque 0.8 ... 1.3 Nm / 12 Ib.in
Recommended screwdriver M3.5 (Pozidriv 2)
