ABB CONTACTORS AND MOTOR PROTECTION 6/29

—

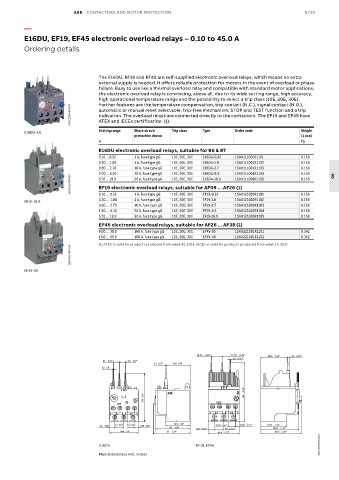

E16DU, EF19, EF45 electronic overload relays – 0.10 to 45.0 A

Ordering details

The E16DU, EF19 and EF45 are self-supplied electronic overload relays, which means no extra
external supply is needed. It offers reliable protection for motors in the event of overload or phase
failure. Easy to use like a thermal overload relay and compatible with standard motor applications,
the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy,
high operational temperature range and the possibility to select a trip class (10E, 20E, 30E).
Further features are the temperature compensation, trip contact (N.C.), signal contact (N.O.),
2CDC231001F0007 indication. The overload relays are connected directly to the contactors. The EF19 and EF45 have
automatic or manual reset selectable, trip-free mechanism, STOP and TEST function and a trip
ATEX and IECEx certification (1).

E16DU-1.0 Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A kg
E16DU electronic overload relays, suitable for B6 & B7
0.10 ... 0.32 1 A, fuse type gG 10E, 20E, 30E E16DU-0.32 1SAX111001R1101 0.150
0.30 ... 1.00 4 A, fuse type gG 10E, 20E, 30E E16DU-1.0 1SAX111001R1102 0.150
0.80 ... 2.70 10 A, fuse type gG 10E, 20E, 30E E16DU-2.7 1SAX111001R1103 0.150
2.00 ... 6.30 20 A, fuse type gG 10E, 20E, 30E E16DU-6.3 1SAX111001R1104 0.150 06
1SBC101147F0010 EF19 electronic overload relays, suitable for AF09 ... AF26 (1)
E16DU-18.9
1SAX111001R1105
10E, 20E, 30E
50 A, fuse type gG
5.70 ... 18.9
0.150
10E, 20E, 30E
4 A, fuse type gG
0.158
EF19-1.0
0.30 … 1.00
1SAX121001R1102
EF19-18.9 0.10 … 0.32 1 A, fuse type gG 10E, 20E, 30E EF19-0.32 1SAX121001R1101 0.158
0.80 … 2.70 10 A, fuse type gG 10E, 20E, 30E EF19-2.7 1SAX121001R1103 0.158
1.90 … 6.30 20 A, fuse type gG 10E, 20E, 30E EF19-6.3 1SAX121001R1104 0.158
5.70 … 18.9 50 A, fuse type gG 10E, 20E, 30E EF19-18.9 1SAX121001R1105 0.158
EF45 electronic overload relays, suitable for AF26 ... AF38 (1)
9.00 … 30.0 160 A, fuse type gG 10E, 20E, 30E EF45-30 1SAX221001R1101 0.362
15.0 … 45.0 160 A, fuse type gG 10E, 20E, 30E EF45-45 1SAX221001R1102 0.362
(1) ATEX is valid for products produced from week 42, 2014. IECEx is valid for products produced from week 15, 2017.
1SBC101148F0010
EF45-30

15.73 0.62" 11.78 0.46" 38.8 1.53" 2.3 0.09"
1.2 0.05"
9.3 0.37” 9.3 0.37”
2.4 0.37” 36.3 1.43”
1.2 0.5”

3.35"
74.6 2.94” 85

8.2 0.32” 14 0.55” 10.3 0.41” 5.65 0.22” 37.5 1.48” 10.3 0.41" 5.65 0.22" 37.5 1.48"
53 2.09” 8.2 0.32" 14 0.55" 55.4 2.18"
44.4 1.75” 57 2.24” 44.4 1.75" 59.3 2.33"
E16DU EF19, EF45 2CDC107032C0201
Main dimensions mm, inches
