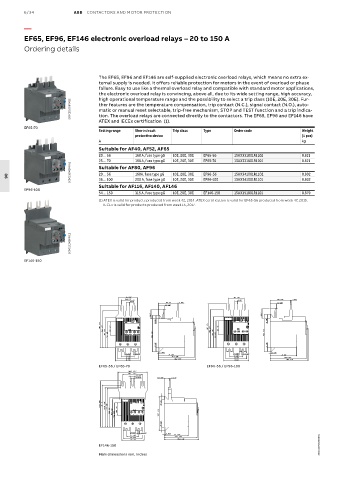

Page 742 - Motor protection and control Manual motor starters, contactors and overload relays

6/34 ABB CONTACTORS AND MOTOR PROTECTION

—
EF65, EF96, EF146 electronic overload relays – 20 to 150 A

Ordering details

The EF65, EF96 and EF146 are self-supplied electronic overload relays, which means no extra ex-
ternal supply is needed. It offers reliable protection for motors in the event of overload or phase
failure. Easy to use like a thermal overload relay and compatible with standard motor applications,
the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy,
high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Fur-
2CDC231001F0012 ther features are the temperature compensation, trip contact (N.C.), signal contact (N.O.), auto-
matic or manual reset selectable, trip-free mechanism, STOP and TEST function and a trip indica-
tion. The overload relays are connected directly to the contactors. The EF65, EF96 and EF146 have

EF65-70 ATEX and IECEx certification (1).
Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A kg
Suitable for AF40, AF52, AF65
20 ... 56 160 A, fuse type gG 10E, 20E, 30E EF65-56 1SAX331001R1102 0.821
25 ... 70 160 A, fuse type gG 10E, 20E, 30E EF65-70 1SAX331001R1101 0.821
2CDC231002F0012 20 ... 56 160A, fuse type gG 10E, 20E, 30E EF96-56 1SAX341001R1102 0.802
Suitable for AF80, AF96
0.802
1SAX341001R1101
10E, 20E, 30E
EF96-100
200 A, fuse type gG
36 ... 100
06
EF96-100 Suitable for AF116, AF140, AF146
54 ... 150 315 A, fuse type gG 10E, 20E, 30E EF146-150 1SAX351001R1101 0.879
(1) ATEX is valid for products produced from week 42, 2014. ATEX certification is valid for EF65-56 produced from week 47, 2015.
IECEx is valid for products produced from week 15, 2017.
2CDC231003F0012

EF146-150

55 2.17" 43.7 1.72"
34.65 1.36" 8 0.31" 56.6 2.23" 3 0.12"
8 0.31" 53.3 2.1" 3 0.12" 17.2 0.68"
17.2 0.68"
1" 25.4 1"
25.4
0.39" 10 0.39"
4.73" 10
105.2 4.14" 3.35" 38.4 1.51" 105.2 4.14" 4.06"
120.2 121.7 4.79" 38.4 1.51"
85.2 2.92" 103.2 4.06" 85.2 3.35" 74.2 2.92" 103.2
74.2
11 0.43" 11 0.43"
3 0.12" 3 0.12"
16 0.63" 5.5 0.22" 74 2.91" 16 0.63" 5.5 0.22" 74 2.91"
37 1.46" 101.4 3.99" 37 1.46"
58 2.28" 105.2 4.14" 58 2.28" 101.4 3.99"
70 2.76" 70 2.76" 105.2 4.14"
EF65-56 / EF65-70 EF96-56 / EF96-100
89.05 3.51"
60.1 2.37"
13 0.5"
6.6 0.26" 15.5 0.61" 4 0.16"
139.4 5.49" 127 5" 119.25 4.69" 117.4 4.62" 88.9 3.5" 85.2 3.35" 38.4 1.51" 103.7 4.08" 10 0.39"
74.2 2.92"
11 0.43"

16 0.63" 5.5 0.22" 3 0.12"
37 1.46" 74 2.91"
101.4 3.99"
58 2.28"
70 2.76" 105.2 4.14"
EF146-150 2CDC107038C0201
Main dimensions mm, inches
