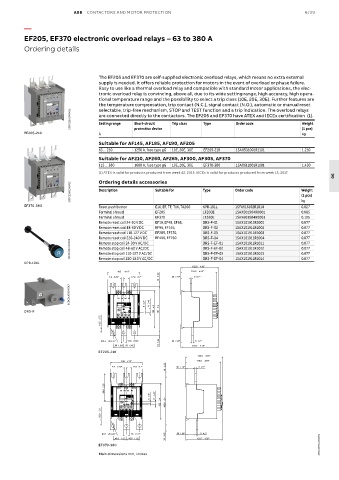

Page 747 - Motor protection and control Manual motor starters, contactors and overload relays

ABB CONTACTORS AND MOTOR PROTECTION 6/39

—
EF205, EF370 electronic overload relays – 63 to 380 A

Ordering details

The EF205 and EF370 are self-supplied electronic overload relays, which means no extra external
supply is needed. It offers reliable protection for motors in the event of overload or phase failure.
Easy to use like a thermal overload relay and compatible with standard motor applications, the elec-
tronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high opera-
tional temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are
the temperature compensation, trip contact (N.C.), signal contact (N.O.), automatic or manual reset
selectable, trip-free mechanism, STOP and TEST function and a trip indication. The overload relays
2CDC231010V0012 are connected directly to the contactors. The EF205 and EF370 have ATEX and IECEx certification (1).
Weight
Setting range
Order code
Short-circuit
Trip class
Type
EF205-210 A protective device (1 pce)
kg
Suitable for AF145, AF185, AF190, AF205
63 ... 210 1250 A, fuse type gG 10E, 20E, 30E EF205-210 1SAX531001R1101 1.210
Suitable for AF210, AF260, AF265, AF300, AF305, AF370
115 ... 380 1600 A, fuse type gG 10E, 20E, 30E EF370-380 1SAX611001R1101 1.430
(1) ATEX is valid for products produced from week 42, 2015. IECEx is valid for products produced from week 15, 2017.
06
Ordering details accessories
2CDC231013V0012 Description Suitable for Type Order code Weight
(1 pce)
kg
EF370-380 Reset push button E16, EF, TF, T16, TA200 KPR-101L 1SFA616162R1014 0.027
Terminal shroud EF205 LT200E 1SAX501904R0001 0.085
Terminal shroud EF370 LT320E 1SAX601904R0001 0.105
Remote reset coil 24-30 V DC EF19, EF45, EF65, DRS-F-01 1SAX101911R1001 0.077
Remote reset coil 48-60 V DC EF96, EF146, DRS-F-02 1SAX101911R1002 0.077
Remote reset coil 110-127 V DC EF205, EF370, DRS-F-03 1SAX101911R1003 0.077
Remote reset coil 220-240 V DC EF460, EF750 DRS-F-04 1SAX101911R1004 0.077
1SFC151224F0002 Remote stop coil 48-60 V AC/DC DRS-F-EF-02 1SAX101911R1012 0.077
0.077
1SAX101911R1011
DRS-F-EF-01
Remote stop coil 24-30 V AC/DC
Remote stop coil 110-127 V AC/DC
DRS-F-EF-03
0.077
1SAX101911R1013
KPR-101L Remote stop coil 220-240 V AC/DC DRS-F-EF-04 1SAX101911R1014 0.077
122.8 4.83"
105 4.13" 116.5 4.59"
10 0.39" 30 1.18" 5 0.2"
7.4 0.29" 17.9 0.7"
2CDC211002V0017
DRS-F 5 0.2" 11 0.43" 122 4.8" 151 5.9"
18.5 0.73"

10 0.39"
Ø 8.5 Ø 0.33" 17.5 0.69" 35 1.38" 5 0.2"
35 1.38" 35 1.38" 121.7 4.79"
EF205-210
122.8 4.83"
105 4.13" 116.5 4.59"
7.4 0.29" 17.9 0.7" 10 0.39" 30 1.18" 5 0.2"

93.8 3.69"
5 0.2" 11 0.43"
122 0.4' 163.6 6.4"
0.9"
22.8

14 0.55"
Ø 11 Ø 0.43" 20 0.79" 35 1.38" 5 0.2"
43.8 1.72" 43.8 1.72" 121.7 4.79"
EF370-380 2CDC107040C0201
Main dimensions mm, inches
