ABB CONTACTORS AND MOTOR PROTECTION 6/35

—

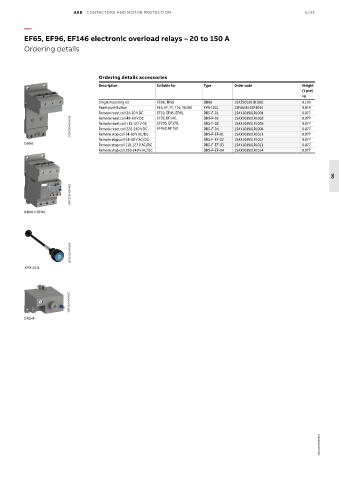

EF65, EF96, EF146 electronic overload relays – 20 to 150 A

Ordering details

Ordering details accessories
Description Suitable for Type Order code Weight
(1 pce)
kg
Single mounting kit EF96, TF96 DB96 1SAZ901901R1001 0.190
Reset push button E16, EF, TF, T16, TA200 KPR-101L 1SFA616162R1014 0.019
Remote reset coil 24-30 V DC EF19, EF45, EF65, DRS-F-01 1SAX101911R1001 0.077
1SAX101911R1002
Remote reset coil 48-60 V DC
DRS-F-02
EF96, EF146,
0.077
2CDC231001V0015 Remote reset coil 110-127 V DC EF205, EF370, DRS-F-03 1SAX101911R1003 0.077
EF460, EF750
DRS-F-04
1SAX101911R1004
0.077
Remote reset coil 220-240 V DC
0.077
1SAX101911R1011
DRS-F-EF-01
Remote stop coil 24-30 V AC/DC
DB96 Remote stop coil 48-60 V AC/DC DRS-F-EF-02 1SAX101911R1012 0.077
0.077
1SAX101911R1013
Remote stop coil 110-127 V AC/DC
DRS-F-EF-03
Remote stop coil 220-240 V AC/DC DRS-F-EF-04 1SAX101911R1014 0.077
06
2CDC231002V0015
DB96 + EF96

1SFC151224F0002

KPR-101L

2CDC211002V0017

DRS-F

2CDC107038C0201
