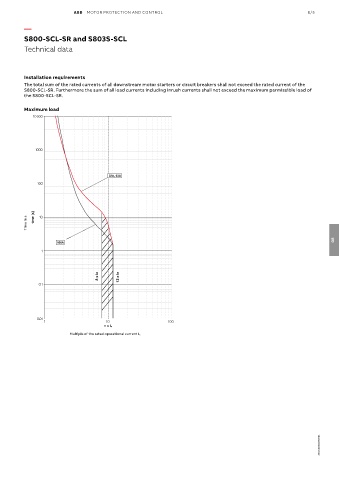

S800-SCL-SR and S803S-SCL
Technical data

Installation requirements
The total sum of the rated currents of all downstream motor starters or circuit breakers shall not exceed the rated current of the
S800-SCL-SR. Furthermore the sum of all load currents including inrush currents shall not exceed the maximum permissible load of
the S800-SCL-SR.

Maximum load
10000

1000

100

Time in s time [s] 10

08
1

0.1

0.01
1 10 100
n x Ie
Multiple of the rated operational current I e

2CCC413012B0201
