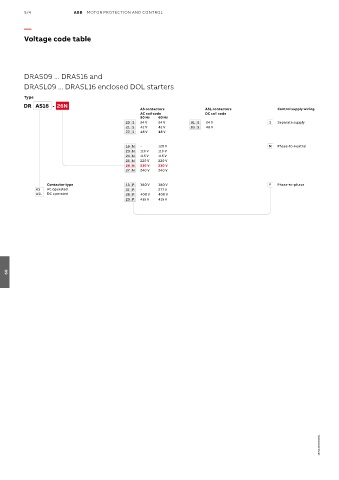

Voltage code table
DRAS09 ... DRAS16 and
DRASL09 ... DRASL16 enclosed DOL starters
Type
DR AS16 - 26N
AS contactors ASL contactors Control supply wiring
AC coil code DC coil code
50 Hz 60 Hz
20 S 24 V 24 V 81 S 24 V S Separate supply
21 S 42 V 42 V 83 S 48 V
22 S 48 V 48 V
16 N - 120 V N Phase-to-neutral
23 N 110 V 110 V
24 N 115 V 115 V
25 N 220 V 220 V
26 N 230 V 230 V
27 N 240 V 240 V
Contactor type 13 P 380 V 380 V P Phase-to-phase
AS AC operated 17 P - 277 V
ASL DC operated 28 P 400 V 400 V
29 P 415 V 415 V
09
