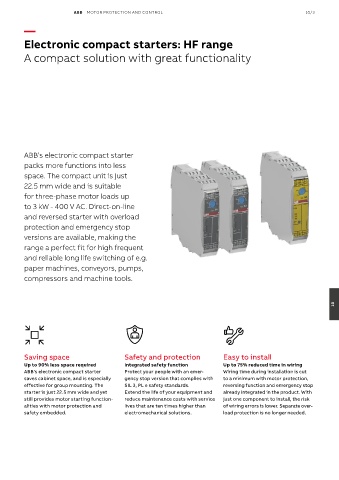

ABB MOTOR PROTECTION AND CONTROL 10/3

—

Electronic compact starters: HF range

A compact solution with great functionality

ABB’s electronic compact starter
packs more functions into less

space. The compact unit is just
22.5 mm wide and is suitable
for three-phase motor loads up
to 3 kW - 400 V AC. Direct-on-line

and reversed starter with overload
protection and emergency stop
versions are available, making the
range a perfect fit for high frequent

and reliable long life switching of e.g.
paper machines, conveyors, pumps,
compressors and machine tools.

10

Saving space Safety and protection Easy to install
Up to 90% less space required Integrated safety function Up to 75% reduced time in wiring
ABB's electronic compact starter Protect your people with an emer- Wiring time during installation is cut
saves cabinet space, and is especially gency stop version that complies with to a minimum with motor protection,
effective for group mounting. The SIL 3, PL e safety standards. reversing function and emergency stop
starter is just 22.5 mm wide and yet Extend the life of your equipment and already integrated in the product. With
still provides motor starting function- reduce maintenance costs with service just one component to install, the risk
alities with motor protection and lives that are ten times higher than of wiring errors is lower. Separate over-
safety embedded. electromechanical solutions. load protection is no longer needed.
