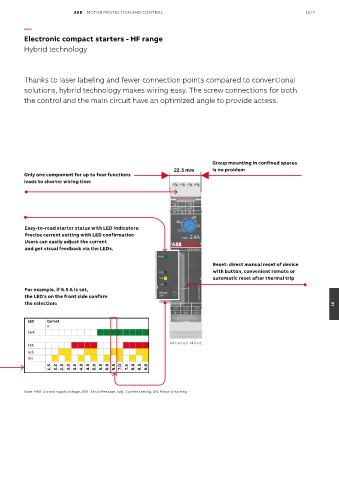

ABB MOTOR PROTECTION AND CONTROL 10/7

—

Electronic compact starters - HF range
Hybrid technology

Thanks to laser labeling and fewer connection points compared to conventional
solutions, hybrid technology makes wiring easy. The screw connections for both
the control and the main circuit have an optimized angle to provide access.

Group mounting in confined spaces
22.5 mm is no problem
Only one component for up to four functions
leads to shorter wiring time

Easy-to-read starter status with LED indicators:
Precise current setting with LED confirmation
Users can easily adjust the current
and get visual feedback via the LEDs.

Reset: direct manual reset of device
with button, convenient remote or
automatic reset after thermal trip

For example, if 6.5 A is set,
the LED's on the front side confirm
the selection: 10

LED Current
A
PWR

ERR HF2.4-DOL-24 V DC
Iadj.
ON
1.5 2.2 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0

Note: PWR: Control supply voltage, ERR : Error/Message, Iadj.: Current setting, ON: Motor is running
