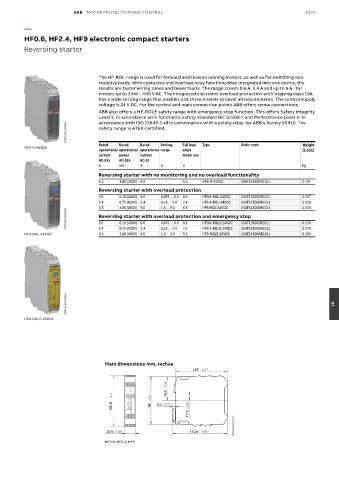

ABB MOTOR PROTECTION AND CONTROL 10/9

—

HF0.6, HF2.4, HF9 electronic compact starters
Reversing starter

The HF-ROL-range is used for forward and reverse running motors, as well as for switching non
resistive loads. With contactor and overload relay functionalities integrated into one device, the
results are faster wiring times and fewer faults. The range covers 0.6 A, 2.4 A and up to 9 A - for
motors up to 3 kW – 400 V AC. The integrated electronic overload protection with tripping class 10A
has a wide setting range that enables just three models to cover all requirements. The control supply
voltage is 24 V DC. For the control and main connection points ABB offers screw connections.
ABB also offers a HF-ROLE safety range with emergency stop function. This offers Safety Integrity
Level 3, in accordance with functional safety standard IEC 61508-1 and Performance Level 'e' in
accordance with ISO 13849-1 all in combination with a safety relay like ABB's Sentry SSR10. The
2CDC241013V0016 safety range is ATEX-certified.

HF9-R-24VDC Rated Rated Rated Setting Full load Type Order code Weight
operational operational operational range amps (1 pce)
current power current motor use
AC-53a AC-53a AC-51
A kW A A A kg
Reversing starter with no monitoring and no overload functionality
6.5 3.00 (400V) 9.0 - 6.5 HF9-R-24VDC 1SAT144000R1011 0.174
Reversing starter with overload protection
0.6 0.18 (400V) 0.6 0.075 … 0.6 0.6 HF0.6-ROL-24VDC 1SAT115000R1011 0.217
2.4 0.75 (400V) 2.4 0.18 … 2.4 2.4 HF2.4-ROL-24VDC 1SAT125000R1011 0.219
6.5 3.00 (400V) 9.0 1.5 … 9.0 6.5 HF9-ROL-24VDC 1SAT145000R1011 0.218
2CDC241006V0016 Reversing starter with overload protection and emergency stop 0.218
0.6
0.18 (400V) 0.6
0.075 … 0.6
0.6
HF0.6-ROLE-24VDC
1SAT116000R1011
HF9-ROLE-24VDC
6.5
1.5 … 9.0
0.289
6.5
3.00 (400V) 9.0
1SAT146000R1011
HF9-ROL-24VDC 2.4 0.75 (400V) 2.4 0.18 … 2.4 2.4 HF2.4-ROLE-24VDC 1SAT126000R1011 0.270

2CDC241003V0016 10

HF9-ROLE-24VDC

Main dimensions mm, inches

2CDC242003F0017

HF0.6, HF2.4, HF9
