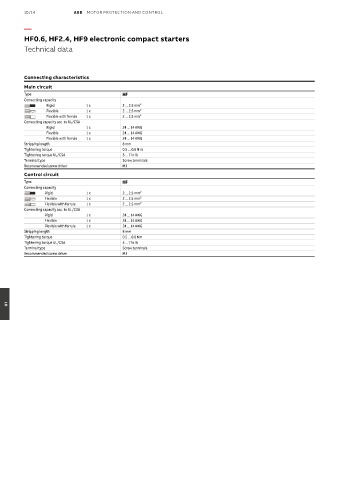

Page 802 - Motor protection and control Manual motor starters, contactors and overload relays

10/14 ABB MOTOR PROTECTION AND CONTROL

—

HF0.6, HF2.4, HF9 electronic compact starters
Technical data

Connecting characteristics
Main circuit
Type HF
Connecting capacity
Rigid 1 x 2 ... 2.5 mm²
Flexible 1 x 2 ... 2.5 mm²
Flexible with ferrule 1 x 2 ... 2.5 mm²
Connecting capacity acc. to UL/CSA
Rigid 1 x 24 ... 14 AWG
Flexible 1 x 24 ... 14 AWG
Flexible with ferrule 1 x 24 ... 14 AWG
Stripping length 8 mm
Tightening torque 0.5 ... 0.6 N·m
Tightening torque UL/CSA 5 ... 7 in·lb
Terminal type Screw terminals
Recommended screw driver M3
Control circuit
Type HF
Connecting capacity
Rigid 1 x 2 ... 2.5 mm²
Flexible 1 x 2 ... 2.5 mm²
Flexible with ferrule 1 x 2 ... 2.5 mm²
Connecting capacity acc. to UL/CSA
Rigid 1 x 24 ... 14 AWG
Flexible 1 x 24 ... 14 AWG
Flexible with ferrule 1 x 24 ... 14 AWG
Stripping length 8 mm
Tightening torque 0.5 ... 0.6 Nm
Tightening torque UL/CSA 5 ... 7 in.lb
Terminal type Screw terminals
Recommended screw driver M3
