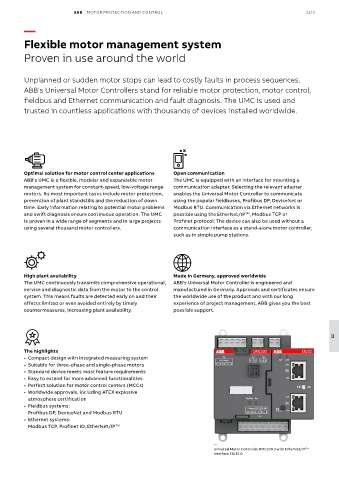

Page 807 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 11/3

—

Flexible motor management system

Proven in use around the world

Unplanned or sudden motor stops can lead to costly faults in process sequences.

ABB's Universal Motor Controllers stand for reliable motor protection, motor control,
fieldbus and Ethernet communication and fault diagnosis. The UMC is used and
trusted in countless applications with thousands of devices installed worldwide.

Optimal solution for motor control center applications Open communication
ABB's UMC is a flexible, modular and expandable motor The UMC is equipped with an interface for mounting a
management system for constant-speed, low-voltage range communication adapter. Selecting the relevant adapter
motors. Its most important tasks include motor protection, enables the Universal Motor Controller to communicate
prevention of plant standstills and the reduction of down using the popular fieldbuses, Profibus DP, DeviceNet or
time. Early information relating to potential motor problems Modbus RTU. Communication via Ethernet networks is
and swift diagnosis ensure continuous operation. The UMC possible using the EtherNet/IP , Modbus TCP or
TM
is proven in a wide range of segments and in large projects Profinet protocol. The device can also be used without a
using several thousand motor controllers. communication interface as a stand-alone motor controller,
such as in simple pump stations.

High plant availability Made in Germany, approved worldwide
The UMC continuously transmits comprehensive operational, ABB's Universal Motor Controller is engineered and
service and diagnostic data from the motor to the control manufactured in Germany. Approvals and certificates ensure
system. This means faults are detected early on and their the worldwide use of the product and with our long
effects limited or even avoided entirely by timely experience of project management, ABB gives you the best
countermeasures, increasing plant availability. possible support.

11

The highlights
• Compact design with integrated measuring system
• Suitable for three-phase and single-phase motors
• Standard device meets most feature requirements
• Easy to extend for more advanced functionalities
• Perfect solution for motor control centers (MCCs)
• Worldwide approvals, including ATEX explosive
atmosphere certification
• Fieldbus systems:
Profibus DP, DeviceNet and Modbus RTU
• Ethernet systems:
Modbus TCP, Profinet IO, EtherNet/IP TM

—
Universal Motor Controller UMC100.3 with EtherNet/IP TM
interface EIU32.0
