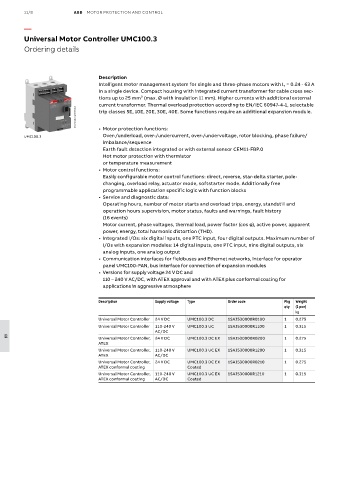

Universal Motor Controller UMC100.3
Ordering details

Description
Intelligent motor management system for single and three-phase motors with I e = 0.24 - 63 A
in a single device. Compact housing with integrated current transformer for cable cross sec-
tions up to 25 mm² (max. Ø with insulation 11 mm). Higher currents with additional external
current transformer. Thermal overload protection according to EN/IEC 60947-4-1, selectable
2CDC341006V0014 trip classes 5E, 10E, 20E, 30E, 40E. Some functions require an additional expansion module.

• Motor protection functions:
UMC100.3 Over-/underload, over-/undercurrent, over-/undervoltage, rotor blocking, phase failure/
imbalance/sequence
Earth fault detection integrated or with external sensor CEM11-FBP.0
Hot motor protection with thermistor
or temperature measurement
• Motor control functions:
Easily configurable motor control functions: direct, reverse, star-delta starter, pole-
changing, overload relay, actuator mode, softstarter mode. Additionally free
programmable application specific logic with function blocks
• Service and diagnostic data:
Operating hours, number of motor starts and overload trips, energy, standstill and
operation hours supervision, motor status, faults and warnings, fault history
(16 events)
Motor current, phase voltages, thermal load, power factor (cos φ), active power, apparent
power, energy, total harmonic distortion (THD).
• Integrated I/Os: six digital inputs, one PTC input, four digital outputs. Maximum number of
I/Os with expansion modules: 14 digital inputs, one PTC input, nine digital outputs, six
analog inputs, one analog output
• Communication interfaces for fieldbuses and Ethernet networks, Interface for operator
panel UMC100-PAN, bus interface for connection of expansion modules
• Versions for supply voltage 24 V DC and
110 – 240 V AC/DC, with ATEX approval and with ATEX plus conformal coating for
applications in aggressive atmosphere

Description Supply voltage Type Order code Pkg Weight
qty (1 pce)
kg
Universal Motor Controller 24 V DC UMC100.3 DC 1SAJ530000R0100 1 0.275
Universal Motor Controller 110-240 V UMC100.3 UC 1SAJ530000R1100 1 0.315
AC/DC
Universal Motor Controller, 24 V DC UMC100.3 DC EX 1SAJ530000R0200 1 0.275
11
ATEX
Universal Motor Controller, 110-240 V UMC100.3 UC EX 1SAJ530000R1200 1 0.315
ATEX AC/DC
Universal Motor Controller, 24 V DC UMC100.3 DC EX 1SAJ530000R0210 1 0.275
ATEX conformal coating Coated
Universal Motor Controller, 110-240 V UMC100.3 UC EX 1SAJ530000R1210 1 0.315
ATEX conformal coating AC/DC Coated
