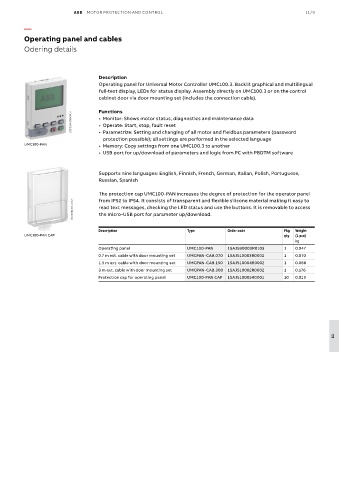

ABB MOTOR PROTECTION AND CONTROL 11/9

—

Operating panel and cables
Odering details

Description
Operating panel for Universal Motor Controller UMC100.3. Backlit graphical and multilingual
full-text display, LEDs for status display. Assembly directly on UMC100.3 or on the control
cabinet door via door mounting set (includes the connection cable).

Functions
2CDC341008V0014 • Monitor: Shows motor status, diagnostics and maintenance data
• Operate: Start, stop, fault reset
• Parametrize: Setting and changing of all motor and fieldbus parameters (password
protection possible); all settings are performed in the selected language
UMC100-PAN • Memory: Copy settings from one UMC100.3 to another
• USB port for up/download of parameters and logic from PC with PBDTM software

Supports nine languages: English, Finnish, French, German, Italian, Polish, Portuguese,
Russian, Spanish

The protection cap UMC100-PAN increases the degree of protection for the operator panel
from IP52 to IP54. It consists of transparent and flexible silicone material making it easy to
2CDC341001V0017 read text messages, checking the LED status and use the buttons. It is removable to access
the micro-USB port for parameter up/download.

Description Type Order code Pkg Weight
UMC100-PAN CAP qty (1 pce)
kg
Operating panel UMC100-PAN 1SAJ590000R0103 1 0.047
0.7 m ext. cable with door mounting set UMCPAN-CAB.070 1SAJ510003R0002 1 0.070
1.5 m ext. cable with door mounting set UMCPAN-CAB.150 1SAJ510004R0002 1 0.088
3 m ext. cable with door mounting set UMCPAN-CAB.300 1SAJ510002R0002 1 0.176
Protection cap for operating panel UMC100-PAN CAP 1SAJ510005R0001 10 0.013

11
