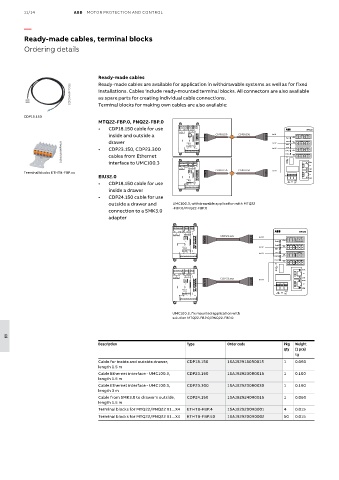

Page 818 - Motor protection and control Manual motor starters, contactors and overload relays

11/14 ABB MOTOR PROTECTION AND CONTROL

—

Ready-made cables, terminal blocks
Ordering details

Ready-made cables
Ready-made cables are available for application in withdrawable systems as well as for fixed
2CDC341007F0018 installations. Cables include ready-mounted terminal blocks. All connectors are also available
as spare parts for creating individual cable connections.
Terminal blocks for making own cables are also available:

CDP18.150
MTQ22-FBP.0, PNQ22-FBP.0
• CDP18.150 cable for use
X6 X7 X8 MTQ22
DO Relay C 0 12 T1 T2 Ca Cb
inside and outside a CDP18.150 CDP18.150 to X1
C
X9 Run to X2 Port 1 X2 X1
drawer
Port 2
2CDC341008F0018 • CDP23.150, CDP23.300 0V 24V Power DO 3 X5 DI 24V 0 ... 5 to X3 Port 3 X3 X4
Trip/Rdy
RDY
TCP
Port 4
cables from Ethernet
X5
interface to UMC100.3
E1 Data
X6 X7 X8
DO Relay T1 T2 Ca Cb
C C 0 12 CDP18.150 CDP18.150 to X4 Link
Terminal blocks ETHTB-FBP.xx X9 Data
EIU32.0 X6 E2
Trip/Rdy Run 24V Link
• CDP18.150 cable for use 0V 24V Power DO 3 X5 DI 24V 0 ... 5 0V DC
inside a drawer
• CDP24.150 cable for use
outside a drawer and UMC100.3, withdrawable application with MTQ22
connection to a SMK3.0 -FBP.0/PNQ22-FBP.0
adapter
MTQ22
X6 X7 X8
DO Relay T1 T2 Ca Cb
C C 0 12 CDP23.xxx to X1
Port 1
X9 X1
Port 2 X2
Trip/Rdy Run to X2
RDY
Power DO DI 24V
0V 24V 3 0 ... 5
X5 TCP
to X3
Port 3 X3
Port 4 X4
X5
Data
E1
X6 X7 X8
Link
DO Relay T1 T2 Ca Cb
C C 0 12 CDP23.xxx to X4 Data
X9 E2
X6
Link
Trip/Rdy Run
24V
Power DO DI 24V 0V
0V 24V 3 0 ... 5 DC
X5
UMC100.3, fix mounted application with
solution MTQ22-FBP.0/PNQ22-FBP.0
11
Description Type Order code Pkg Weight
qty (1 pce)
kg
Cable for inside and outside drawer, CDP18.150 1SAJ929180R0015 1 0.060
length 1.5 m
Cable Ethernet interface - UMC100.3, CDP23.150 1SAJ929230R0015 1 0.100
length 1.5 m
Cable Ethernet interface - UMC100.3, CDP23.300 1SAJ929230R0030 1 0.160
length 3 m
Cable from SMK3.0 to drawer's outside, CDP24.150 1SAJ929240R0015 1 0.060
length 1.5 m
Terminal blocks for MTQ22/PNQ22 X1...X4 ETHTB-FBP.4 1SAJ929200R0001 4 0.015
Terminal blocks for MTQ22/PNQ22 X1...X4 ETHTB-FBP.50 1SAJ929200R0002 50 0.015
