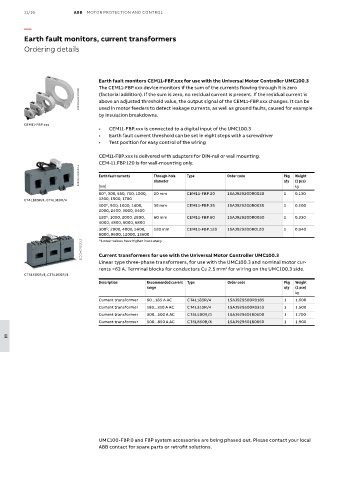

Page 820 - Motor protection and control Manual motor starters, contactors and overload relays

11/16 ABB MOTOR PROTECTION AND CONTROL

—

Earth fault monitors, current transformers
Ordering details

Earth fault monitors CEM11-FBP.xxx for use with the Universal Motor Controller UMC100.3
The CEM11-FBP.xxx device monitors if the sum of the currents flowing through it is zero
2CDC345011F0008 (factorial addition). If the sum is zero, no residual current is present. If the residual current is

above an adjusted threshold value, the output signal of the CEM11-FBP.xxx changes. It can be
used in motor feeders to detect leakage currents, as well as ground faults, caused for example
by insulation breakdowns.

CEM11-FBP.xxx
• CEM11-FBP.xxx is connected to a digital input of the UMC100.3
• Earth fault current threshold can be set in eight steps with a screwdriver
• Test position for easy control of the wiring

CEM11-FBP.xxx is delivered with adapters for DIN-rail or wall mounting.
CEM-11.FBP.120 is for wall-mounting only.
2CDC341001S0012 Earth fault currents Through-hole Type Order code Pkg Weight

qty
diameter
(1 pce)
[mA]
80 , 300, 550, 750, 1000, 20 mm CEM11-FBP.20 1SAJ929200R0020 1 kg
0.130
1)
CT4L185R/4, CT4L310R/4 1200, 1500, 1700
1)
100 , 500, 1000, 1400, 35 mm CEM11-FBP.35 1SAJ929200R0035 1 0.200
2000, 2400, 3000, 3400
1)
120 , 1000, 2000, 2800, 60 mm CEM11-FBP.60 1SAJ929200R0060 1 0.330
4000, 4800, 6000, 6800
300 , 2000, 4000, 5600, 120 mm CEM11-FBP.120 1SAJ929200R0120 1 0.940
1)
8000, 9600, 12000, 13600
2CDC341002S0012 Current transformers for use with the Universal Motor Controller UMC100.3
1) Lower values have higher inaccuracy
Linear type three-phase transformers, for use with the UMC100.3 and nominal motor cur-
rents >63 A. Terminal blocks for conductors Cu 2.5 mm for wiring on the UMC100.3 side.
2
CT5L500R/4, CT5L850R/4
Description Recommended current Type Order code Pkg Weight
range qty (1 pce)
kg
Current transformer 60...185 A AC CT4L185R/4 1SAJ929500R0185 1 1.600
Current transformer 180...310 A AC CT4L310R/4 1SAJ929500R0310 1 1.500
Current transformer 300...500 A AC CT5L500R/4 1SAJ929501R0500 1 1.700
Current transformer 500...850 A AC CT5L850R/4 1SAJ929501R0850 1 1.900

11

UMC100-FBP.0 and FBP system accessories are being phased out. Please contact your local
ABB contact for spare parts or retrofit solutions.
