11/20            ABB  MOTOR PROTECTION AND CONTROL

          —

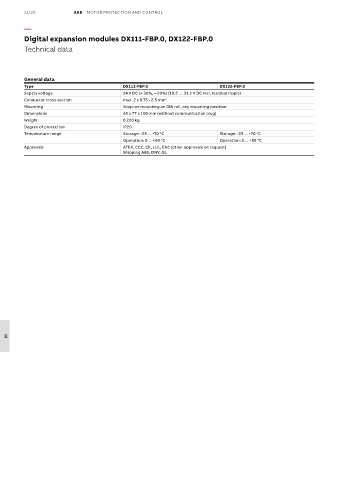

          Digital expansion modules DX111-FBP.0, DX122-FBP.0
          Technical data





          General data
          Type                              DX111-FBP.0                       DX122-FBP.0
          Supply voltage                    24 V DC (+ 30%, – 20%) (19.2 … 31.2 V DC incl. residual ripple)
          Conductor cross section           max. 2 x 0.75 - 2.5 mm   2
          Mounting                          Snap-on mounting on DIN rail, any mounting position
          Dimensions                        45 x 77 x 100 mm (without communication plug)
          Weight                            0.220 kg
          Degree of protection              IP20
          Temperature range                 Storage: -25 ... +70 °C           Storage: -25 ... +70 °C
                                            Operation: 0 ... +60 °C           Operation: 0 ... +55 °C
          Approvals                         ATEX, CCC, CE, cUL, EAC (other approvals on request)
                                            Shipping ABS, DNV, GL
