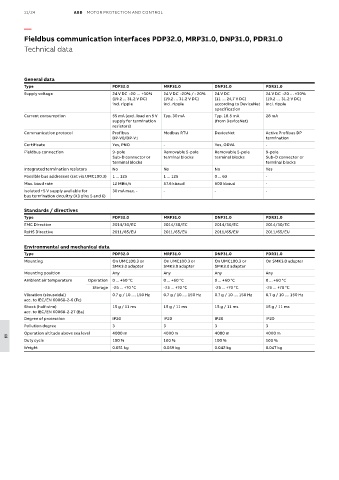

11/24 ABB MOTOR PROTECTION AND CONTROL

—

Fieldbus communication interfaces PDP32.0, MRP31.0, DNP31.0, PDR31.0
Technical data

General data
Type PDP32.0 MRP31.0 DNP31.0 PDR31.0
Supply voltage 24 V DC -20 … +30% 24 V DC -20% / - 20% 24 V DC 24 V DC -20 … +30%
(19.2 ... 31.2 V DC) (19.2 … 31.2 V DC) (11 … 24,7 V DC) (19.2 … 31.2 V DC)
incl. ripple incl. ripple according to DeviceNet incl. ripple
specification
Current consumption 55 mA (excl. load on 5 V Typ. 30 mA Typ. 18.5 mA 28 mA
supply for termination (from DeviceNet)
resistors)
Communication protocol Profibus Modbus RTU DeviceNet Active Profibus DP
DP-V0/DP-V1 termination
Certificate Yes, PNO - Yes, ODVA -
Fieldbus connection 9-pole Removable 5-pole Removable 5-pole 9-pole
Sub-D connector or terminal blocks terminal blocks Sub-D connector or
terminal blocks terminal blocks
Integrated termination resistors No No No Yes
Possible bus addresses (set via UMC100.3) 1 ... 125 1 ... 125 0 ... 63 -
Max. baud rate 12 MBit/s 57.6 kbaud 500 kbaud -
Isolated +5 V supply available for 30 mA max. - - - -
bus termination circuitry (X3 pins 5 and 6)

Standards / directives
Type PDP32.0 MRP31.0 DNP31.0 PDR31.0
EMC Directive 2014/30/EC 2014/30/EC 2014/30/EC 2014/30/EC
RoHS Directive 2011/65/EU 2011/65/EU 2011/65/EU 2011/65/EU

Environmental and mechanical data
Type PDP32.0 MRP31.0 DNP31.0 PDR31.0
Mounting On UMC100.3 or On UMC100.3 or On UMC100.3 or On SMK3.0 adapter
SMK3.0 adapter SMK3.0 adapter SMK3.0 adapter
Mounting position Any Any Any Any
Ambient air temperature Operation 0 ... +60 °C 0 ... +60 °C 0 ... +60 °C 0 ... +60 °C
Storage -25 ... +70 °C -25 ... +70 °C -25 ... +70 °C -25 ... +70 °C
Vibration (sinusoidal) 0.7 g / 10 .... 150 Hz 0.7 g / 10 .... 150 Hz 0.7 g / 10 .... 150 Hz 0.7 g / 10 .... 150 Hz
acc. to IEC/EN 60068-2-6 (Fc)
Shock (half-sine) 15 g / 11 ms 15 g / 11 ms 15 g / 11 ms 15 g / 11 ms
acc. to IEC/EN 60068-2-27 (Ea)
Degree of protection IP20 IP20 IP20 IP20
Pollution degree 3 3 3 3
Operation altitude above sea level 4000 m 4000 m 4000 m 4000 m
11
Duty cycle 100 % 100 % 100 % 100 %
Weight 0.051 kg 0.039 kg 0.042 kg 0.047 kg
