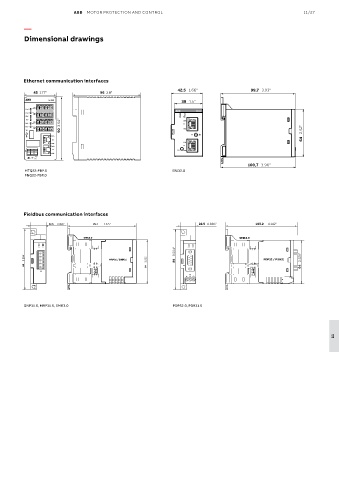

Dimensional drawings

Ethernet communication interfaces
42.5 1.66" 99,7 3.93"
45 1.77" 96 3.8"
ABB MTQ22 38 1.5"
X1
Port 1
EIU32
Port 2 X2
RDY NS MS
TCP Data
Port 3 X3 3.54" E2
Port 4 X4
90
X5 Link
FE 64 2.52"
Data
E1
Data
Link
Data E1
E2 B1
X6 Link
Link
0V 24V
DC
100,7 3.96"
MTQ22-FBP.0 EIU32.0
PNQ22-FBP.0
Fieldbus communication interfaces
22.5 0.886" 99.7 3.925" 22.5 0.886" 105.2 4.142"

SMK3.0 SMK3.0
xxx xx xxx xx
3.504"
3.504" MRP31 / DNP31 2.520" 89 PDP32 / PDR31 2.520"
89 64 64

DNP31.0, MRP31.0, SMK3.0 PDP32.0, PDR31.0
