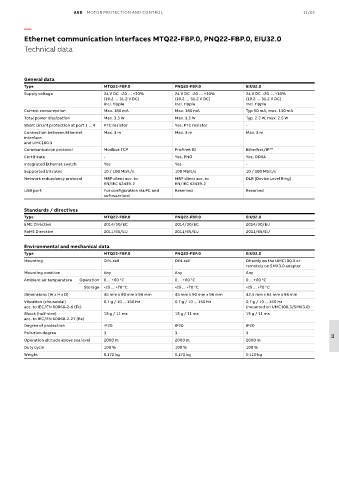

Page 829 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 11/25

—

Ethernet communication interfaces MTQ22-FBP.0, PNQ22-FBP.0, EIU32.0
Technical data

General data
Type MTQ22-FBP.0 PNQ22-FBP.0 EIU32.0
Supply voltage 24 V DC -20 … +30% 24 V DC -20 … +30% 24 V DC -20 … +30%
(19.2 … 31.2 V DC) (19.2 … 31.2 V DC) (19.2 … 31.2 V DC)
incl. ripple incl. ripple incl. ripple
Current consumption Max. 180 mA Max. 180 mA Typ 90 mA, max. 130 mA
Total power dissipation Max. 3.5 W Max. 3.5 W Typ. 2.2 W, max. 2.5 W
Short circuit protection at port 1 ... 4 PTC resistor Yes, PTC resistor -
Connection between Ethernet Max. 3 m Max. 3 m Max. 3 m
interface
and UMC100.3
Communication protocol Modbus TCP Profinet IO EtherNet/IP TM
Certificate - Yes, PNO Yes, ODVA
Integrated Ethernet switch Yes Yes -
Supported bit rates 10 / 100 Mbit/s 100 Mbit/s 10 / 100 Mbit/s
Network redundancy protocol MRP client acc. to MRP client acc. to DLR (Device Level Ring)
EN/IEC 62439-2 EN/IEC 62439-2
USB port For configuration via PC and Reserved Reserved
software tool

Standards / directives
Type MTQ22-FBP.0 PNQ22-FBP.0 EIU32.0
EMC Directive 2014/30/EC 2014/30/EC 2014/30/EU
RoHS Directive 2011/65/EU 2011/65/EU 2011/65/EU

Environmental and mechanical data
Type MTQ22-FBP.0 PNQ22-FBP.0 EIU32.0
Mounting DIN-rail DIN-rail Directly on the UMC100.3 or
remotely on SMK3.0 adapter
Mounting position Any Any Any
Ambient air temperature Operation 0 ... +60 °C 0 ... +60 °C 0 ... +60 °C
Storage -25 ... +70 °C -25 ... +70 °C -25 ... +70 °C
Dimensions (W x H x D) 45 mm x 90 mm x 96 mm 45 mm x 90 mm x 96 mm 42.5 mm x 64 mm x 96 mm
Vibration (sinusoidal) 0.7 g / 10 ... 150 Hz 0.7 g / 10 ... 150 Hz 0.7 g / 10 ... 150 Hz
acc. to IEC/EN 60068-2-6 (Fc) (mounted on UMC100.3/SMK3.0)
Shock (half-sine) 15 g / 11 ms 15 g / 11 ms 15 g / 11 ms
acc. to IEC/EN 60068-2-27 (Ea)
Degree of protection IP20 IP20 IP20
Pollution degree 3 3 3
11
Operation altitude above sea level 2000 m 2000 m 2000 m
Duty cycle 100 % 100 % 100 %
Weight 0.172 kg 0.172 kg 0.110 kg
