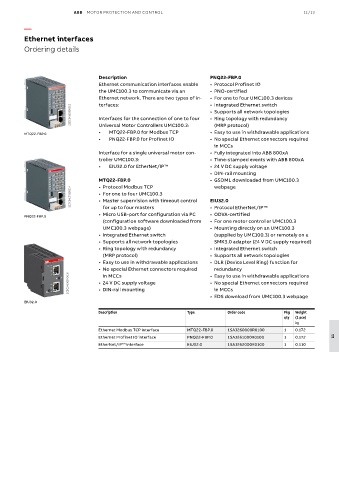

Page 817 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 11/13

—

Ethernet interfaces
Ordering details

Description PNQ22-FBP.0
Ethernet communication interfaces enable • Protocol Profinet IO
the UMC100.3 to communicate via an • PNO-certified
Ethernet network. There are two types of in- • For one to four UMC100.3 devices
• Integrated Ethernet switch
terfaces:
2CDC341003S0012 Interfaces for the connection of one to four • Supports all network topologies
• Ring topology with redundancy
(MRP protocol)
•
MTQ22-FBP.0 for Modbus TCP
MTQ22-FBP.0 Universal Motor Controllers UMC100.3: • Easy to use in withdrawable applications
• PNQ22-FBP.0 for Profinet IO • No special Ethernet connectors required
in MCCs
Interface for a single universal motor con- • Fully integrated into ABB 800xA
troller UMC100.3: • Time-stamped events with ABB 800xA
• EIU32.0 for EtherNet/IP™ • 24 V DC supply voltage
• DIN-rail mounting
MTQ22-FBP.0 • GSDML downloaded from UMC100.3
webpage
• Protocol Modbus TCP
2CDC341001S0014 • For one to four UMC100.3 EIU32.0
• Master supervision with timeout control
for up to four masters
• ODVA-certified
• Micro USB-port for configuration via PC • Protocol EtherNet/IP™
PNQ22-FBP.0
(configuration software downloaded from • For one motor controller UMC100.3
UMC100.3 webpage) • Mounting directly on an UMC100.3
• Integrated Ethernet switch (supplied by UMC100.3) or remotely on a
• Supports all network topologies SMK3.0 adapter (24 V DC supply required)
• Ring topology with redundancy • Integrated Ethernet switch
(MRP protocol) • Supports all network topologies
• Easy to use in withdrawable applications • DLR (Device Level Ring) function for
redundancy
• No special Ethernet connectors required • Easy to use in withdrawable applications
2CDC341009V0018 • 24 V DC supply voltage • No special Ethernet connectors required
in MCCs
• DIN-rail mounting
in MCCs
• EDS download from UMC100.3 webpage
EIU32.0
Description Type Order code Pkg Weight
qty (1 pce)
kg
Ethernet Modbus TCP interface MTQ22-FBP.0 1SAJ260000R0100 1 0.172
Ethernet Profinet IO interface PNQ22-FBP.0 1SAJ261000R0100 1 0.172 11
EtherNet/IP TM interface EIU32.0 1SAJ262000R0100 1 0.110
