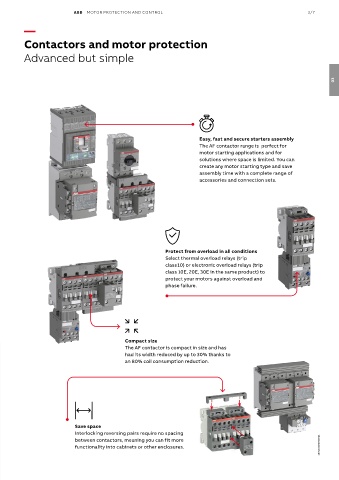

ABB MOTOR PROTECTION AND CONTROL 3/7

—

Contactors and motor protection

Advanced but simple

03

Easy, fast and secure starters assembly
The AF contactor range is perfect for
motor starting applications and for
solutions where space is limited. You can
create any motor starting type and save
assembly time with a complete range of
accessories and connection sets.

Protect from overload in all conditions
Select thermal overload relays (trip
class 10) or electronic overload relays (trip
class 10E, 20E, 30E in the same product) to
protect your motors against overload and
phase failure.

Compact size
The AF contactor is compact in size and has
had its width reduced by up to 30% thanks to
an 80% coil consumption reduction.

Save space
Interlocking reversing pairs require no spacing
between contactors, meaning you can fit more
functionality into cabinets or other enclosures. 1SBC100202S0201
