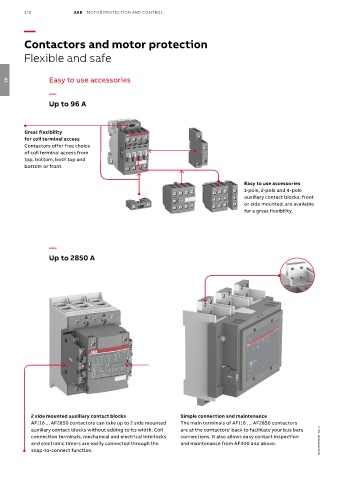

3/8 ABB MOTOR PROTECTION AND CONTROL

—

Contactors and motor protection

Flexible and safe

Easy to use accessories
03
—
Up to 96 A

Great flexibility
for coil terminal access
Contactors offer free choice
of coil terminal access from
top, bottom, both top and
bottom or front.

Easy to use accessories
1-pole, 2-pole and 4-pole
auxiliary contact blocks, front
or side mounted, are available
for a great flexibility.

—

Up to 2850 A

2 side mounted auxiliary contact blocks Simple connection and maintenance
AF116 ... AF2850 contactors can take up to 2 side mounted The main terminals of AF116 … AF2850 contactors
auxiliary contact blocks without adding to its width. Coil are at the contactors' back to facilitate your bus bars
connection terminals, mechanical and electrical interlocks connections. It also allows easy contact inspection
and electronic timers are easily connected through the and maintenance from AF400 and above. 1SBC100202S0201 - Rev. A
snap-to-connect function.
