Page 87 - Motor protection and control Manual motor starters, contactors and overload relays

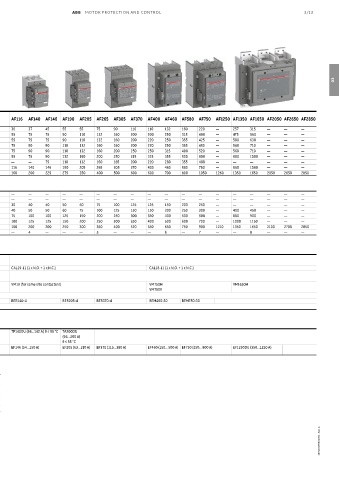

ABB MOTOR PROTECTION AND CONTROL 3/13

03

AC / DC Control supply Type AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650 AF2850
IEC AC-3 Rated operational power 220 - 230 - 240 V kW 2.2 3 4 6.5 9 11 11 15 18.5 22 25 30 37 45 55 55 75 90 110 110 132 160 220 — 257 315 — — —
θ ≤ 60 °C for AF09 ... AF370 380 - 400 V kW 4 5.5 7.5 11 15 18.5 18.5 22 30 37 45 55 75 75 90 110 132 160 200 200 250 315 400 — 475 560 — — —
θ ≤ 55 °C for AF400 ... AF2650 415 V kW 4 5.5 9 11 15 18.5 22 30 37 45 55 55 75 75 90 110 132 160 200 220 250 355 425 — 500 630 — — —
440 V kW 4 5.5 9 15 18.5 22 22 30 37 45 55 75 90 90 110 132 160 160 200 220 250 355 450 — 560 710 — — —
500 V kW 5.5 7.5 9 15 18.5 22 22 30 37 45 55 75 90 90 110 132 160 200 250 250 315 400 520 — 560 710 — — —
690 V kW 5.5 7.5 9 15 18.5 22 22 30 37 45 55 55 75 90 132 160 200 250 315 315 355 500 600 — 800 1000 — — —
1000 V kW — — — — — — — — — 35 40 — — 75 110 132 160 185 200 220 280 355 400 — — — — — —
Rated operational current 380 - 400 V A 9 12 18 26 32 38 40 53 65 80 96 116 140 146 190 205 265 305 370 400 460 580 750 — 860 1060 — — —
AC-1 Rated operational current θ ≤ 40 °C, 690 V A 25 28 30 45 50 50 70 100 105 125 130 160 200 225 275 350 400 500 600 600 700 800 1050 1260 1350 1650 2050 2650 2850

UL / CSA 1-phase motor rating 120 V hp 0.75 1 1.5 2 2 2 3 3 5 7.5 7.5 — — — — — — — — — — — — — — — — — —
240 V hp 1.5 2 3 3 5 5 7.5 10 15 15 20 — — — — — — — — — — — — — — — — — —
3-phase motor rating 200 - 208 V hp 2 3 5 7.5 10 10 10 15 20 25 30 30 40 40 50 60 75 100 125 125 150 200 250 — — — — — —
220 - 240 V hp 2 3 5 7.5 10 10 15 20 25 30 30 40 50 50 60 75 100 125 150 150 200 250 300 — 400 450 — — —
440 - 480 V hp 5 7.5 10 15 20 25 30 40 50 60 60 75 100 100 125 150 200 250 300 350 400 500 600 — 800 900 — — —
550 - 600 V hp 7.5 10 15 20 25 30 40 50 60 75 75 100 125 125 150 200 250 300 350 400 500 600 700 — 1000 1150 — — —
General use rating 600 V A 25 28 30 45 50 50 60 80 90 105 115 160 200 200 250 300 350 400 520 550 650 750 900 1210 1350 1650 2100 2700 2850
NEMA NEMA Size 00 0 — 1 — — 2 — — 3 — — 4 — — — 5 — — — 6 — 7 — — 8 — — —

Main accessories
Auxiliary contact blocks Front mounting CA4-10 (1 x N.O.)
CA4-01 (1 x N.C.)
Side mounting CAL4-11 (1 x N.O. + 1 x N.C.) CAL19-11 (1 x N.O. + 1 x N.C.) CAL18-11 (1 x N.O. + 1 x N.C.)
Timers Electronic TEF4-ON
TEF4-OFF
Interlocking units Mechanical VM4 VM96-4 VM19 (for same size contactors) VM750H VM1650H
VM750V
Mechanical / Electrical VEM4
Connection sets For reversing contactors BER16-4 BER38-4 BER65-4 BER96-4 BER140-4 BER205-4 BER370-4 BEM460-30 BEM750-30
Surge suppressors Built-in surge protection

Overload relays
Thermal relays Class 10 TF42 (0.10…38 A) TF65 (22...67 A) TF96 (40...96 A) TF140DU (66...142 A) θ ≤ 55 °C TA200DU
(Class 10A for TF140, (66...200 A)
TA200DU) θ ≤ 55 °C
Electronic relays Class 10E, 20E, 30E EF19 (0.10…18.9 A) EF19 (0.10…18.9 A) EF65 (20...70 A) EF96 (36...100 A) EF146 (54...150 A) EF205 (63...210 A) EF370 (115...380 A) EF460 (150…500 A) EF750 (250…800 A) EF1250DU (350...1250 A)
EF45 (9…45 A)

Manual motor starters
Thermal / magnetic MS116 (0.10...32 A) MS165 (10...80 A)
protection lcs up to 50 kA for class 10 A lcs up to 100 kA (1)
Class 10 MS132 (0.10...32 A)
lcs up to 100 kA
Magnetic only types MO132 (0.16...32 A) MO165 (16...80 A)
Ics up to 100 kA lcs up to 100 kA (1)
Accessories For contactor mounting BEA16-4 BEA38-4 BEA65-4 (2)
(1) MS165/MO165 are suitable for use with AF09 ... AF30 for North american applications.
(2) BEA65-4 suitable for MS165 and MO165 only.
1SBC101908S0201 - Rev. A
