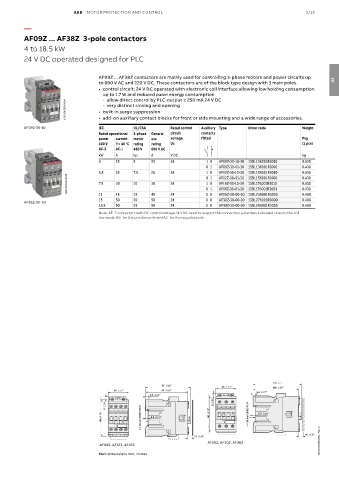

ABB MOTOR PROTECTION AND CONTROL 3/15

—
AF09Z ... AF38Z 3-pole contactors

4 to 18.5 kW
24 V DC operated designed for PLC

AF09Z ... AF38Z contactors are mainly used for controlling 3-phase motors and power circuits up
to 690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles. 03
• control circuit: 24 V DC operated with electronic coil interface allowing low holding consumption
up to 1.7 W and reduced panel energy consumption
- allow direct control by PLC-output ≥ 250 mA 24 V DC
1SBC101525V0014 • built-in surge suppression
- very distinct closing and opening
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

AF09Z-30-10 IEC UL/CSA Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General circuit contacts
power current motor use voltage fitted Pkg
400 V θ ≤ 40 °C rating rating Uc (1 pce)
AC-3 AC-1 480 V 600 V AC
kW A hp A V DC kg
4 25 5 25 24 1 0 AF09Z-30-10-30 1SBL136001R3010 0.430
0 1 AF09Z-30-01-30 1SBL136001R3001 0.430
5.5 28 7.5 28 24 1 0 AF12Z-30-10-30 1SBL156001R3010 0.430
1SBC101525V0014 7.5 30 10 30 24 1 0 AF16Z-30-10-30 1SBL176001R3010 0.430
AF12Z-30-01-30
0 1
1SBL156001R3001
0.430
1SBL176001R3001
0.430
0 1
AF16Z-30-01-30
15
11
0 0
24
0.480
15 45 20 45 24 0 0 AF26Z-30-00-30 1SBL236001R3000 0.480
AF30Z-30-00-30 1SBL276001R3000
50
50
AF26Z-30-00
18.5 50 25 50 24 0 0 AF38Z-30-00-30 1SBL296001R3000 0.480
Note: AF..Z contactors with DC control voltage 24 V DC need to respect the connection polarities indicated close to the coil
terminals: A1+ for the positive pole and A2- for the negative pole.

106 4.17"
97 3.82" 45 1.77" 100 3.94" 35 1.38"
2 x
45 1.77" 91 3.58" 35 1.38" ø 4.2 0.17" M4 8-32 UNC
ø 4.2 0.17" 2 x 5.5 0.22"
5.5 0.22" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 35 mm EN/IEC 60715 70 2.76" 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 5 0.20"
10 0.39" 5 0.20"
10 0.39"
5 0.20"
AF26Z, AF30Z, AF38Z 1SBC100328S0201 - Rev. A
AF09Z, AF12Z, AF16Z
Main dimensions mm, inches
