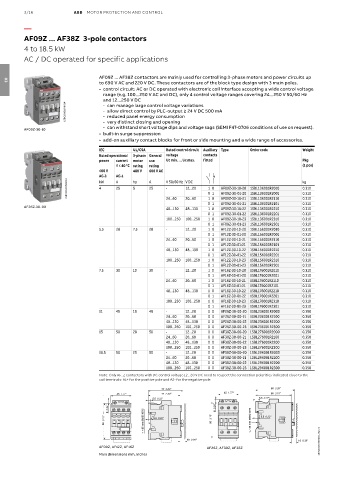

Page 90 - Motor protection and control Manual motor starters, contactors and overload relays

3/16 ABB MOTOR PROTECTION AND CONTROL

—
AF09Z ... AF38Z 3-pole contactors

4 to 18.5 kW
AC / DC operated for specific applications

AF09Z ... AF38Z contactors are mainly used for controlling 3-phase motors and power circuits up
to 690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles.
03
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...250 V 50/60 Hz
and 12...250 V DC
1SBC101011V0014 - allow direct control by PLC-output ≥ 24 V DC 500 mA
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
AF09Z-30-10
• built-in surge suppression
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1 hp A V 50/60 Hz V DC kg
1SBC101001V0014 4 25 5 25 - 12...20 1 0 AF09Z-30-10-20 1SBL136001R2010 0.310
kW
A
0.310
0 1
AF09Z-30-01-20 1SBL136001R2001
24...60
1 0
20...60
AF09Z-30-01-21
0 1 AF09Z-30-10-21 1SBL136001R2110 0.310
0.310
1SBL136001R2101
AF26Z-30-00 48...130 48...130 1 0 AF09Z-30-10-22 1SBL136001R2210 0.310
0 1 AF09Z-30-01-22 1SBL136001R2201 0.310
100...250 100...250 1 0 AF09Z-30-10-23 1SBL136001R2310 0.310
0 1 AF09Z-30-01-23 1SBL136001R2301 0.310
5.5 28 7.5 28 - 12...20 1 0 AF12Z-30-10-20 1SBL156001R2010 0.310
0 1 AF12Z-30-01-20 1SBL156001R2001 0.310
24...60 20...60 1 0 AF12Z-30-10-21 1SBL156001R2110 0.310
0 1 AF12Z-30-01-21 1SBL156001R2101 0.310
48...130 48...130 1 0 AF12Z-30-10-22 1SBL156001R2210 0.310
0 1 AF12Z-30-01-22 1SBL156001R2201 0.310
100...250 100...250 1 0 AF12Z-30-10-23 1SBL156001R2310 0.310
0 1 AF12Z-30-01-23 1SBL156001R2301 0.310
7.5 30 10 30 - 12...20 1 0 AF16Z-30-10-20 1SBL176001R2010 0.310
0 1 AF16Z-30-01-20 1SBL176001R2001 0.310
24...60 20...60 1 0 AF16Z-30-10-21 1SBL176001R2110 0.310
0 1 AF16Z-30-01-21 1SBL176001R2101 0.310
48...130 48...130 1 0 AF16Z-30-10-22 1SBL176001R2210 0.310
0 1 AF16Z-30-01-22 1SBL176001R2201 0.310
100...250 100...250 1 0 AF16Z-30-10-23 1SBL176001R2310 0.310
0 1 AF16Z-30-01-23 1SBL176001R2301 0.310
11 45 15 45 - 12...20 0 0 AF26Z-30-00-20 1SBL236001R2000 0.350
24...60 20...60 0 0 AF26Z-30-00-21 1SBL236001R2100 0.350
48...130 48...130 0 0 AF26Z-30-00-22 1SBL236001R2200 0.350
100...250 100...250 0 0 AF26Z-30-00-23 1SBL236001R2300 0.350
15 50 20 50 - 12...20 0 0 AF30Z-30-00-20 1SBL276001R2000 0.350
24...60 20...60 0 0 AF30Z-30-00-21 1SBL276001R2100 0.350
48...130 48...130 0 0 AF30Z-30-00-22 1SBL276001R2200 0.350
100...250 100...250 0 0 AF30Z-30-00-23 1SBL276001R2300 0.350
18.5 50 25 50 - 12...20 0 0 AF38Z-30-00-20 1SBL296001R2000 0.350
24...60 20...60 0 0 AF38Z-30-00-21 1SBL296001R2100 0.350
48...130 48...130 0 0 AF38Z-30-00-22 1SBL296001R2200 0.350
100...250 100...250 0 0 AF38Z-30-00-23 1SBL296001R2300 0.350
Note: Only AF..Z contactors with DC control voltage 12...20 V DC need to respect the connection polarities indicated close to the
coil terminals: A1+ for the positive pole and A2- for the negative pole.
77 3.03" 86 3.39"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 80 3.15" 35 1.38" 2 x
ø 4.2 0.17" ø 4.2 0.17" M4 8-32 UNC
5.5 0.22" M4 8-32 UNC 5.5 0.22"
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 5 0.20"

10 0.39" 10 0.39" 5 0.20"
5 0.20" 1SBC101372S0201 - Rev. C
AF09Z, AF12Z, AF16Z AF26Z, AF30Z, AF38Z
Main dimensions mm, inches
