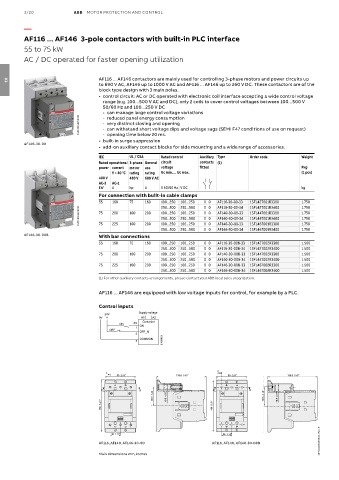

Page 94 - Motor protection and control Manual motor starters, contactors and overload relays

3/20 ABB MOTOR PROTECTION AND CONTROL

—

AF116 ... AF146 3-pole contactors with built-in PLC interface
55 to 75 kW
AC / DC operated for faster opening utilization

AF116 ... AF146 contactors are mainly used for controlling 3-phase motors and power circuits up
to 690 V AC, AF146 up to 1000 V AC and AF116 ... AF146 up to 260 V DC. These contactors are of the
03
block type design with 3 main poles.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...500 V AC and DC), only 2 coils to cover control voltages between 100...500 V
50/60 Hz and 100...250 V DC
- can manage large control voltage variations
1SFC101182V0001 - very distinct closing and opening
- reduced panel energy consumption
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request)
- opening time below 20 ms.
• built-in surge suppression
AF146-30-00
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL / CSA Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General circuit contacts (1)
power current motor use voltage fitted Pkg
θ ≤ 40 °C rating rating Uc min. ... Uc max. (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
For connection with built-in cable clamps
55 160 75 160 100...250 100...250 0 0 AF116-30-00-33 1SFL427001R3300 1.750
250...500
250...500
1SFL427001R3400
1.750
AF116-30-00-34
0 0
1SFC101185V0001 75 200 100 200 100...250 100...250 0 0 AF140-30-00-33 1SFL447001R3300 1.750
1.750
0 0
AF140-30-00-34
1SFL447001R3400
250...500
250...500
100
200
100...250
75
225
250...500
1.750
1SFL467001R3400
AF146-30-00-34
0 0
250...500 100...250 0 0 AF146-30-00-33 1SFL467001R3300 1.750
AF146-30-00B With bar connections
55 160 75 160 100...250 100...250 0 0 AF116-30-00B-33 1SFL427002R3300 1.500
250...500 250...500 0 0 AF116-30-00B-34 1SFL427002R3400 1.500
75 200 100 200 100...250 100...250 0 0 AF140-30-00B-33 1SFL447002R3300 1.500
250...500 250...500 0 0 AF140-30-00B-34 1SFL447002R3400 1.500
75 225 100 200 100...250 100...250 0 0 AF146-30-00B-33 1SFL467002R3300 1.500
250...500 250...500 0 0 AF146-30-00B-34 1SFL467002R3400 1.500
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
AF116 ... AF146 are equipped with low voltage inputs for control, for example by a PLC.
Control inputs

E
E
90 3.54" 138.5 5.45" 90 3.54" 138.5 5.45"
D D D D
55.5 0.22" 19.5 4.96" 55.5 2.18" 19.5 0.77"
150 5.91" 150 5.91"

1SFC101164C0201 - Rev. B
30 1.18" 30 1.18"
AF116, AF140, AF146-30-00 AF116, AF140, AF146-30-00B
Main dimensions mm, inches
