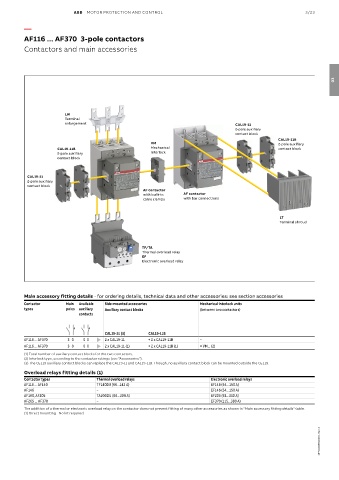

ABB MOTOR PROTECTION AND CONTROL 3/23

—

AF116 ... AF370 3-pole contactors
Contactors and main accessories

03

LW
Terminal
enlargement CAL19-11
2-pole auxiliary
contact block
CAL19-11B
VM 2-pole auxiliary
CAL19-11B Mechanical contact block
2-pole auxiliary interlock
contact block

CAL19-11
2-pole auxiliary
contact block
AF contactor
with built-in AF contactor
cable clamps with bar connections

LT
Terminal shroud

TF/TA
Thermal overload relay
EF
Electronic overload relay

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Contactor Main Available Side-mounted accessories Mechanical interlock units
types poles auxiliary Auxiliary contact blocks (between two contactors)
contacts

CAL19-11 (3) CAL19-11B
AF116 ... AF370 3 0 0 0 2 x CAL19-11 + 2 x CAL19-11B –
AF116 ... AF370 3 0 0 0 2 x CAL19-11 (1) + 2 x CAL19-11B (1) + VM... (2)
(1) Total number of auxiliary contact blocks for the two contactors.
(2) Interlock type, according to the contactor ratings (see "Accessories").
(3) The CEL19 auxiliary contact blocks can replace the CAL19-11 and CAL19-11B. Though, no auxiliary contact block can be mounted outside the CEL19.
Overload relays fitting details (1)
Contactor types Thermal overload relays Electronic overload relays
AF116 ... AF140 TF140DU (66...142 A) EF146 (54...150 A)
AF146 – EF146 (54...150 A)
AF190, AF205 TA200DU (66...200 A) EF205 (63...210 A)
AF265 ... AF370 – EF370 (115...380 A)
The addition of a thermal or electronic overload relay on the contactor does not prevent fitting of many other accessories as shown in "Main accessory fitting details" table.
(1) Direct mounting - No kit required.
